Network server RS720A-E9-RS24-E

storagecalculationrack-mount

Overview

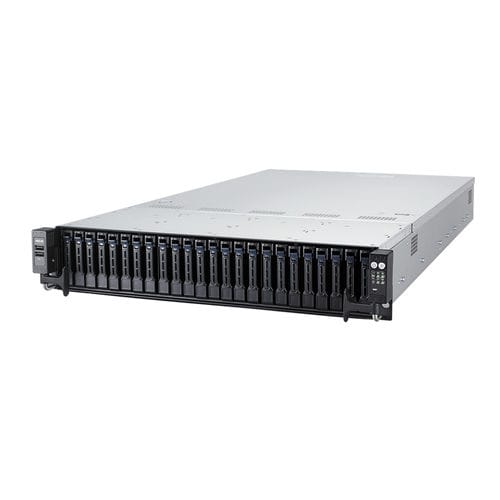

ASUS RS720A-E9-RS24-E is built on the AMD EPYC™ platform in a 2U rack form factor. The system supports up to 32 cores per CPU and up to 128 threads, provides 32 DIMM slots for large memory capacity and bandwidth, and leverages integrated processor I/O to reduce latency and improve throughput.

Key Features

• AMD EPYC™ platform design supporting up to 32 cores per CPU
• 8 + 1 expansion slot architecture for flexible PCIe configurations
• Tool-less maintenance features and energy-efficient design
• Onboard remote management with ASMB9-iKVM and ASUS Control Center support

Expansion and I/O
The server includes seven full-height PCIe 3.0 x16 slots (operating in x8 mode) with pairing options to enable three PCIe 3.0 x16 configurations, plus one low-profile PCIe 3.0 x16 slot (x16 mode) and one OCP Mezzanine 2.0 slot (x16 mode) for OCP LAN cards, providing flexible expandability for storage and networking in a 2U chassis.

User-friendly and energy-efficient design
RS720A-E9-RS24-E features two M.2 slots supporting 22110-size SSDs, an externally visible Q-code for diagnostics, a tool-less rack rail kit for simplified installation and removal, and tool-less hot-swappable fans for faster maintenance. The design removes the power-sharing board to improve energy efficiency and reduce operational power consumption.

Complete remote server management
The server provides onboard ASMB9-iKVM for out-of-band remote management via IPMI and supports centralized management with ASUS Control Center, enabling comprehensive control and streamlined IT operations.

Specifications

• Form factor: 2U rack server
• CPU platform: AMD EPYC™ (supports up to 32 cores per CPU, up to 128 threads)
• Memory: 32 DIMM slots (high capacity and bandwidth)
• PCIe slots: Seven full-height PCIe 3.0 x16 slots (x8 mode), one low-profile PCIe 3.0 x16 slot (x16 mode)
• OCP: One OCP Mezzanine 2.0 slot (x16 mode)
• Storage: Two M.2 slots (supports 22110-size SSDs)
• Management: Onboard ASMB9-iKVM, IPMI support, compatible with ASUS Control Center
• Maintenance features: Visible Q-code, tool-less rack rail kit, tool-less hot-swappable fans
• Design: Integrated processor I/O controller to reduce latency
• Expandability: 8 + 1 expansion slot architecture with flexible pairing
