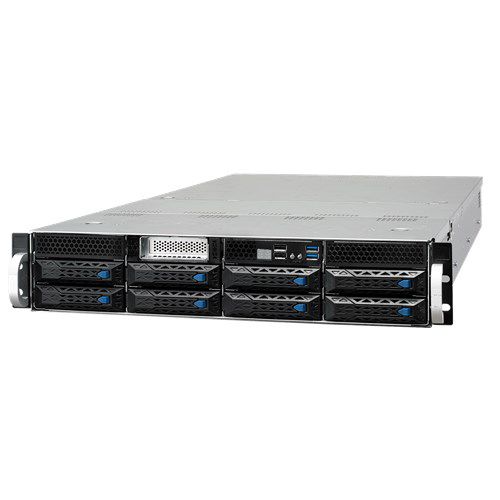

Storage server ESC4000 G4

calculationGPUrack-mount

Key Features

• Powered by 2nd Gen Intel Xeon Scalable processors
• 150W CPU support with 16 DIMM slots
• Flexible choice of versatile accelerators
• Up to 8+3 flexible expansion slots in a 2U server
• Expandable storage — port-to-port NVMe (OCuLink) and one M.2 slot supporting 2280 SSDs
• 1+1 redundant 1600W 80 Plus Platinum power supplies
• Tool-less chassis and hot-swap fan design for easier maintenance
• Integrated remote management — ASUS Control Center (ACC) and ASMB9-iKVM support
• Smart thermal design reducing fan power consumption by up to 20%
• Two hot-plug, hot-swap fans for redundancy and thermal efficiency

Overview
ESC4000 G4 is a 2U accelerator server built on 2nd Gen Intel Xeon Scalable processors. The platform supports Intel Optane DC persistent memory and Intel Deep Learning Boost to improve I/O and inference performance while providing dense accelerator capacity in a compact 2U chassis.

Flexible choice on versatile accelerators
Supports up to four double-deck server GPUs in a 2U form factor with broad compatibility across NVIDIA, AMD and Intel accelerators.

Expansion and I/O
Expansion slots:
Eight full-length PCI Express 3.0 x16 (configurable: 4 at x16 or 8 at x8)
One low-profile PCI Express 3.0 x24 (supports riser card for an additional PCIe x16, x16 Gen3 link)
One PCI Express x8 (plus one internal PCIe x8 for HBA/RAID card)

User-friendly design for easier server maintenance
Visible external Q-code for diagnostics, tool-less chassis for quick installation/removal, and tool-less hot-swappable fans for faster maintenance.

Expandable storage for faster transfer speeds
Full-bandwidth port-to-port OCuLink for two NVMe devices; one M.2 slot supports 2280-size SSDs (PCIe 3.0 x4) for OS/additional storage.

Fully integrated remote server management
Supports ASMB9-iKVM for out-of-band management (remote BIOS updates, standalone KVM, video recording, BSOD capture) and ASUS Control Center (ACC) for centralized IT management and remote monitoring.

Smart thermal design for energy efficiency
Smart thermal radar with multiple ambient sensors for CPU, memory, GPU, SSD and LAN card enables dynamic fan-speed control to improve power efficiency and reduce fan power consumption by up to 20%.

Specifications

• Form factor: 2U rack accelerator server
• Processor: 2nd Gen Intel Xeon Scalable (supports up to 150W CPUs)
• Memory: 16 DIMM slots (supports Intel Optane DC persistent memory)
• GPU: Supports up to four double-deck server GPUs; broad NVIDIA/AMD/Intel accelerator support
• Drive bays / storage: 8 hot-swap HDD bays; OCuLink port-to-port NVMe for two NVMe devices; one M.2 slot (2280 SSD)
• Expansion slots: Eight full-length PCIe 3.0 x16 (4@x16 or 8@x8), one low-profile PCIe 3.0 x24 (riser for extra x16 Gen3), one PCIe x8; one internal PCIe x8 for HBA/RAID
• Power: 1+1 redundant 1600W 80 Plus Platinum PSUs
• Cooling: Two hot-plug, hot-swap fans; smart thermal radar with ambient sensors
• Management: ASMB9-iKVM support; ASUS Control Center (ACC) compatible
• Maintenance: Tool-less chassis and tool-less hot-swap fan design
• Performance: Intel Deep Learning Boost; Intel Optane DC persistent memory support
• Other: Designed for high expandability and scalability in dense 2U deployments
