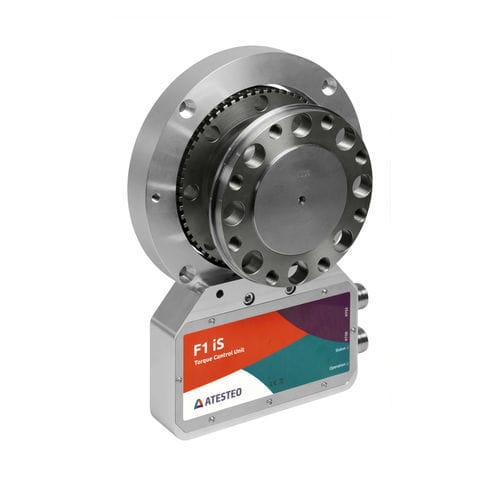

Rotary torque sensor F seriesflange-to-flangevoltage outputCAN Bus
Add to favorites
Compare this product
Characteristics
- Type
- rotary
- Configuration
- flange-to-flange
- Output
- CAN Bus, voltage output, frequency output
- Electrical connection
- Via mating connectors
- Supply voltage
- 24VDC
- Protection level
- IP54
- Other characteristics
- strain gauge, non-contact, high-accuracy, optical, with integrated electronics, telemetry, bearingless, for laboratories, for test benches, with optional speed detection
- Torque
Max.: 120,000 Nm
(88,507.46 ft.lb)Min.: 50 Nm
(36.88 ft.lb)- Precision
0.05 %, 0.1 %
- Rotational speed
Max.: 30,000 rpm
(188,496 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description
Overview
The F series torque transducers are torque measuring flanges engineered for optical data transmission and reliable two-range torque measurement. They are designed to eliminate electromagnetic interference in the measurement chain while providing a flange-mounted solution for direct coupling to rotating shafts.
Key features
Applications
Installation and integration
Ordering and variants
The F series torque transducers are torque measuring flanges engineered for optical data transmission and reliable two-range torque measurement. They are designed to eliminate electromagnetic interference in the measurement chain while providing a flange-mounted solution for direct coupling to rotating shafts.
Key features
- Model series: F series
- Product type: Torque measuring flanges (torque transducers / torque sensors)
- Data transmission: Optical, using infrared high-power LEDs
- Electromagnetic behaviour: Optical transmission immune to electromagnetic disturbances; does not radiate electromagnetic waves
- Measurement concept: Designed as two-range measurement sensors
Applications
- Test benches and dynamometer systems
- Drivetrain and gearbox testing
- Production monitoring and process control in electromagnetically noisy environments
- R&D applications requiring electrical isolation between sensor and acquisition
Installation and integration
- Flange-mounted design for direct coupling to shafts and machines
- Optical telemetry simplifies use in environments with high electromagnetic interference
- Integrates with optical receivers and common data acquisition systems
Ordering and variants
- Available in multiple torque ranges and flange dimensions
- Optional accessories: optical receiver modules, mounting kits and calibration certificates
- Contact supplier for custom configurations and compatibility details
