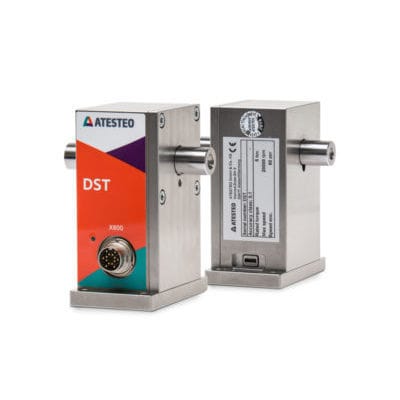

Dynamic torque sensor DSTvoltage outputUSBwireless
Add to favorites
Compare this product
Characteristics
- Type
- dynamic
- Output
- USB, voltage output, frequency output, wireless
- Electrical connection
- Via mating connectors
- Supply voltage
- 24VDC
- Other characteristics
- strain gauge, non-contact, high-accuracy, compact, optical, with integrated electronics, for laboratories, with optional speed detection
- Torque
Min.: 5 Nm
(3.69 ft.lb)Max.: 20 Nm
(14.75 ft.lb)- Precision
0.05 %
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)20,000 rpm
(125,664 rad.min-1)Max.: 20,000 rpm
(125,664 rad.min-1)
Description
Overview
The DST series torque measuring flanges are ATESTEO's compact shaft-based torque meters designed for industrial torque measurement. The units provide wireless data transmission via infrared telemetry for integration into test benches and production environments.
Key characteristics / Technical specifications
Applications
Installation & integration
Ordering information
The DST series torque measuring flanges are ATESTEO's compact shaft-based torque meters designed for industrial torque measurement. The units provide wireless data transmission via infrared telemetry for integration into test benches and production environments.
Key characteristics / Technical specifications
- Product family: DST series (torque measuring flanges)
- Design: shaft-based torque measuring flange / torque measuring shaft
- Telemetry: infrared telemetry for wireless data transmission
- Construction: compact and precise measuring system
- Function: torque measurement (shaft-based torque meter)
- Manufacturer: ATESTEO
- Notes: extends ATESTEO's torque meter offering as a versatile measuring system for industrial use
Applications
- Torque measurement on rotating shafts
- Test benches, production machinery and process monitoring
- R&D and quality control in manufacturing
Installation & integration
- Shaft-mounted installation for direct torque transmission
- Infrared telemetry for wireless integration with data acquisition systems
- Compatibility with common test bench interfaces; consult ATESTEO for specific interfaces
Ordering information
- Available in multiple shaft diameters and measurement ranges
- Options for telemetry and signal interfaces; contact ATESTEO for customization and configuration
