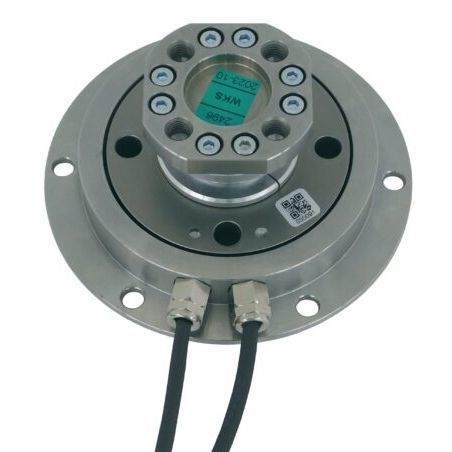

Rotary torque sensor RT11flange-to-flangevoltage outputCAN Bus
Add to favorites
Compare this product
Characteristics
- Type
- rotary
- Configuration
- flange-to-flange
- Output
- CAN Bus, voltage output, frequency output
- Electrical connection
- Via mating connectors
- Supply voltage
- 24VDC
- Protection level
- IP54
- Other characteristics
- non-contact, compact, for test benches, with integrated electronics, for the automobile industry, with optional speed detection, for laboratories, bearingless, optical
- Torque
Min.: 5 Nm
(3.69 ft.lb)Max.: 50 Nm
(36.88 ft.lb)- Precision
0.03 %
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 32,000 rpm
(201,062 rad.min-1)
Description
Overview
The RT11 series torque transducers and torque flanges provide precise torque measurement at the lower end of ATESTEO's measuring range. They are specifically intended for drag-torque measurement tasks and for integration into test benches where low-range, high-sensitivity measurement and reliable data transfer are required.
Key features
Applications / Use cases
Technical specifications
The RT11 series torque transducers and torque flanges provide precise torque measurement at the lower end of ATESTEO's measuring range. They are specifically intended for drag-torque measurement tasks and for integration into test benches where low-range, high-sensitivity measurement and reliable data transfer are required.
Key features
- Low measuring range: designed for the lower levels of ATESTEO's torque measurement portfolio.
- Suitable for drag-torque measurements on gearboxes and drivetrains.
- Flexible mechanical adaptation options to fit varied test setups.
- Optical data transmission using high-performance infrared LEDs for galvanic isolation and interference-resistant signal transfer.
Applications / Use cases
- Drag-torque measurement in drivetrains, transmission testing and component characterization.
- Test benches requiring compact, low-range torque sensors with optical data output for EMI-sensitive environments.
Technical specifications
- Denomination / series: RT11 series
- Product type: Torque transducer / torque measuring flange
- Measuring range positioning: Lower measuring range (complements ATESTEO's higher-range devices)
- Data transmission: Infrared LED (optical) transmission
- Integration: Flexible mechanical adaptation possibilities for various test configurations
- Manufacturer: ATESTEO
- Product page: https://atesteo.com/en/equipment/torquemeters/rt11-series/
