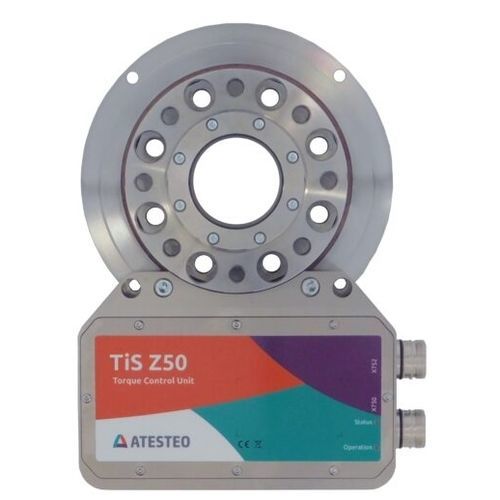

Rotary torque sensor Z50 series

dynamicflange-to-flangevoltage output

Overview
The ATESTEO T series torque measuring flange and transducers are precision devices designed for integration into rotating assemblies for accurate torque acquisition in drivetrain and component testing environments. The series is engineered to allow direct torque measurement while accommodating additional rotating elements via an optional central bore.

Key features

• Central bore option enabling through-passage for a secondary measuring shaft or cable harness
• Designed for installation in rotating test rigs and drivetrain assemblies
• Available in multiple torque ranges and flange sizes to match test bench requirements
• Electrical and signal variants available (analog mV/V, conditioned outputs, digital interfaces such as CAN/EtherCAT as required)
• Mechanical design focused on stiffness and repeatability to minimise measurement error
• Calibration and traceable certificate available on request

Applications

• Drivetrain and component test benches
• Performance and endurance testing of gearboxes, shafts and couplings
• Rotating test rigs where through-shaft routing or cable passage is required

Technical information
The T series integrates mechanical and measurement functions in a flange format suited to complex test setups.

• Manufacturer / brand: ATESTEO
• Model / series designation: T series
• Purpose: torque measuring flange and transducer system for drivetrain and component testing
• Central bore: optional, allows second measuring shaft or cable harness passage
• Outputs & connectivity: available in analog and digital variants; rotary connection options (slip ring / rotary connector) possible
• Calibration: supplied with calibration certificate on request
• EAN: not specified
• Price: not specified

Ordering & customization
The T series is configurable to match torque range, flange pattern and output/interface requirements. Contact ATESTEO or an authorized distributor for configuration, lead times and integration support.
