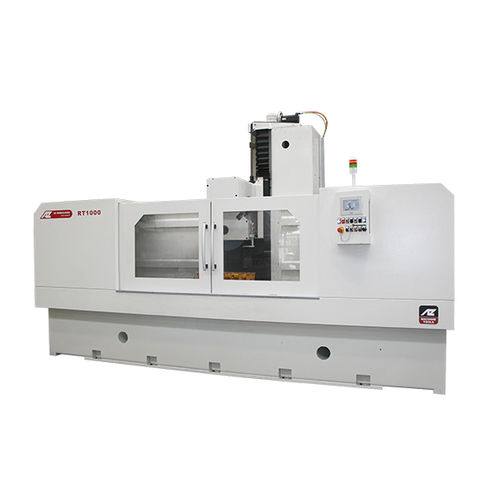

Surface grinding machine RTX1000

for metal sheetsPLC-controlledautomatic

This machine has been designed for use both in a repair workshop that in the manufacturing industry. Ideal for ease of use, ensures a very good precision. The machine can work even small pieces of magnetic media Optional. The RT1000 is equipped with automatic working cycle controlled by PLC with selection of the number of passes, flame arrestor, job advancement, return to starting position and repeat the cycle. SPECIFICATIONS Working capacity 1800x500x950 [mm] Max grinding wheel 400x127x30 [mm] Max. distance from wheel to table surface 980 [mm] Min. distance from wheel to table surface 80 [mm] Min-max grinding wheel thickness 20-50 [mm] Table surface 1890x460 [mm] Vertical wheel head stroke 900 [mm] Longitudinal stroke of the table 2000 [mm] Transversal stroke of the spindle 540 [mm] Grinding wheel vertical increment (automatic) 0.01-0.05 [mm] FEATURES PLC control machine Linear ball guideway system Ballscrew system with brushles motors direct drive Automatic lubrication system
