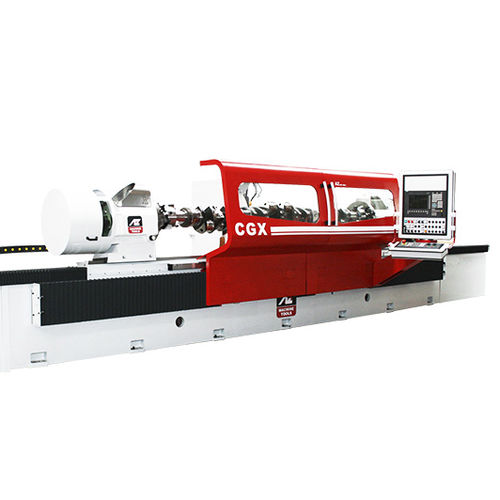

External cylindrical grinding machine CGX360

for crankshaftswith moving tableCNC

This grinding crankshaft has been designed for different requirements: reconditioning and production of individual pieces. Thanks to its flexibility and its options, this machine offers a great speed of use and manufacture, ensuring accuracy and repeatability. Four indexing locations on the head stock with the air operated index pins make it faster to dial in the crankshaft properly. Easily adjusted outboard counterweights never need to be supplemented by inboard weights. The CGX360 are built very heavy with widely spaced ways to assure positive alignment of the wheelhead to the table. Moreover, the controls are easier to use. Precision movement and precision are ensure by ball of screw and linear encoders on both axes. The machine is designed with two sincro driving heads. CGX360 provides longer machine life, longer grinding wheel life and greater safety for the operator and machine. SPECIFICATIONS Height of centers 360 [mm] Swing over table 720 [mm] CONSTRUCTIVE FEATURES Motorized and synchronized rotation of workheads APPLICATIONS AUTOMOTIVE MANUFACTURING-REBUILDING WORKS
