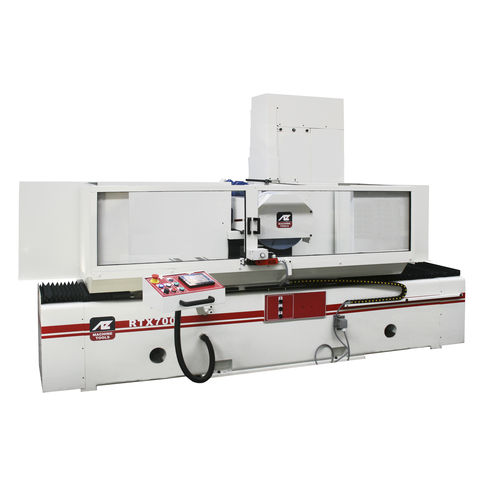

Surface grinding machine RTX700for metal sheetsPLC-controlledautomatic
Add to favorites
Compare this product
Characteristics
- Type
- surface
- Applications
- for metal sheets
- Control type
- automatic, PLC-controlled
- Power
5.5 kW
(7.48 hp)- Speed
Max.: 20 mm/min
(0.01 in/s)Min.: 0 mm/min
(0 in/s)
Description
Working capacity 1250x400x700 [mm]
Max grinding wheel 400x127x50 [mm]
Max. distance from wheel to table surface 700 [mm]
Min. distance from wheel to table surface 130 [mm]
Min-max grinding wheel thickness 20-50 [mm]
Table surface 1300x310 [mm]
Vertical wheelhead stroke 570 [mm]
Longitudinal stroke of the table 1300 [mm]
Transversal stroke of the spindle 400 [mm]
Grinding wheel vertical increment (automatic) 0.01-0.05 [mm]
VIDEO
