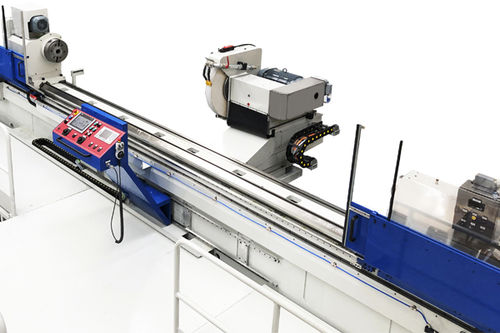

Landing gear grinding machine RUG4500-TM

for shaftuniversal

AZ Universal grinding machines range has been designed to fulfil the requirements of a wide range of applications that combine external, internal, face and taper grinding of components such as: transmission shafts, electric motor shaft, gas turbine shafts, railway shafts, machine tools shafts, landing gear components, etc. CONFIGURATION + MACHINE CONFIGURATION WITH TABLE MOVEMENT ALONG Z AXIS AND WHEELHEAD MOVEMENT ALONG X AXIS + MANUAL WHEELHEAD AND TABLE ROTATION + MOBILE HEADS ALONG TABLE + HYDRAULIC TAILSTOCK + 2 POINTS DIAMOND DRESSER + MANUAL WHEELHEAD ROTATION 180° ALONG B AXIS FOR CONICAL PARTS GRINDING + CORUNDUM GRINDING WHEEL dia 760 mm-Max thick. 100 mm + MANUAL TABLE ROTATION 4° WITH CENTRAL ROTATION SPECIFICATIONS Max Grinding length 4500 mm Max Grinding diameter 350 mm Max Weight admitted 4000 kg TECHNOLOGY + PLC CONTROL SYSTEM + AUTOMATIC WHEEL BALANCING SYSTEM APPLICATIONS AEROSPACE, RAILWAY, PRINTING INDUSTRY, COLD MILLS, AUTOMOTIVE, INDUSTRIAL VEHICLES, SPINDLES FOR MECHANICAL ENGINEERING APPLICATIONS, ELECTRICAL GENERATORS transmission shafts, electric motor shaft, gas turbine shafts, railway shafts, machine tools shafts, landing gear components Ideal machine for high demanding sectors - Wide range of wheelhead configurations - Different models with table movement or wheelhead movement - Partial or total machine cabin + GAP BED OPTION TO ALLOW FOR LARGE DIAMETER SWING COMPONENTS
