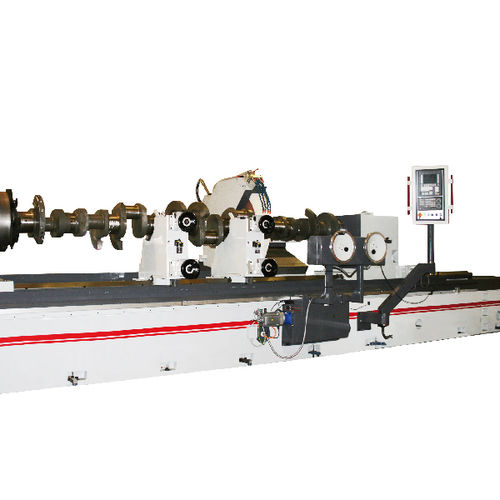

External cylindrical grinding machine CG650for crankshaftswith moving tableCNC
Add to favorites
Compare this product
Characteristics
- Type
- external cylindrical
- Applications
- for crankshafts
- Structure
- with moving table
- Control type
- CNC, PLC-controlled, manual
- Features
- large-size
- Other characteristics
- CBN
- Power
9 kW
(12.24 hp)- Distance between centers
6,400 mm
(252 in)- Grinding wheel diameter
1,300 mm
(51 in)- Speed
Min.: 0 mm/min
(0 in/s)Max.: 3,000 mm/min
(1.97 in/s)
Description
The CG machines are traditional machines suitable for the crankshafts rebuilding up to 6400 mm long. The table moves on bed with “V” and flat guide ways covered with antifriction treatment.
SPECIFICATIONS
Height of centers 650 [mm]
Swing over table 1300 [mm]
CONSTRUCTIVE FEATURES
Motorized and synchronized rotation of workheads
Conventional grinding wheels
Twin cross slide for precision crankshafts centering
APPLICATIONS
MARINE, RAILWAYS, ENERGY
