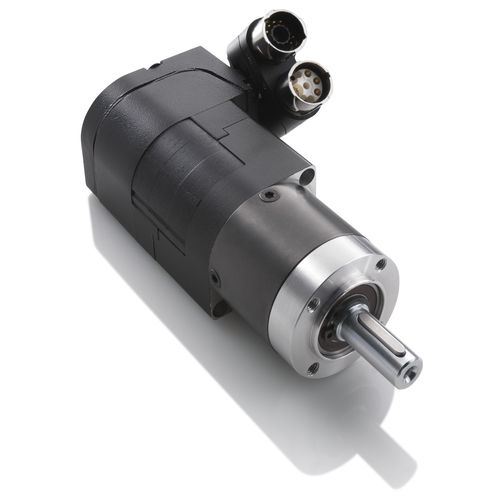

Planetary gearmotor 8LVB
coaxial1 kW...2 kW0.1 - 0.2 Nm

planetary gearmotor
planetary gearmotor
planetary gearmotor
planetary gearmotor
planetary gearmotor
planetary gearmotor
planetary gearmotor
Add to favorites
Compare this product


Characteristics

Type
planetary
Shaft orientation
coaxial
Power
1 kW...2 kW
Torque
0.1 - 0.2 Nm
Product applications
industrial
Other characteristics
compact, two-stage, IP54, single-stage

Description

Highest power density in the smallest installation space The compact, lightweight and highly dynamic 8LVB servo gear motor perfectly complements the 8LV servo motor range. The 8LVB motor with direct-mount gearbox integrates all mechanical and electrical components in the smallest space possible. This makes this series optimally suited when the highest demands on dynamics and torque need to be met in the smallest spatial areas 8LVB gear motors Directly mounting gearboxes on the servo motors reduces weight, saves space and decreases moving mass. Equipped with either a resolver or a highly advanced EnDat 2.2 interface, these motor assemblies are ready to meet the highest demands. With their low moment of inertia, motor/gearbox combinations from the 8LVB series are designed to be highly dynamic and are characterized by excellent self-acceleration properties. As standard, these combinations come equipped with IP54 protection. By providing the highest performance in the smallest amount of space, they are among the most compact systems on the market. 8LVB motor/gearbox combinations are recommended for a wide range of applications and provide an optimum price/performance ratio in power ranges up to 1 kW. In the 8GM series (M - gearboxes mounted directly on the motor), there is the option of choosing between standard gearbox series 8GM40 and 8GM50. The 8GM50 series is optimized to handle increased radial and axial forces. Gearboxes in the standard series are single-stage for gear ratios i = 3, 4, 5, 8 and 10 with a backlash <8-15 arcminutes. In addition, these gearboxes are also available with a two-stage design with an optional smooth shaft.

Catalogs

D01341
D01341
64 Pages
