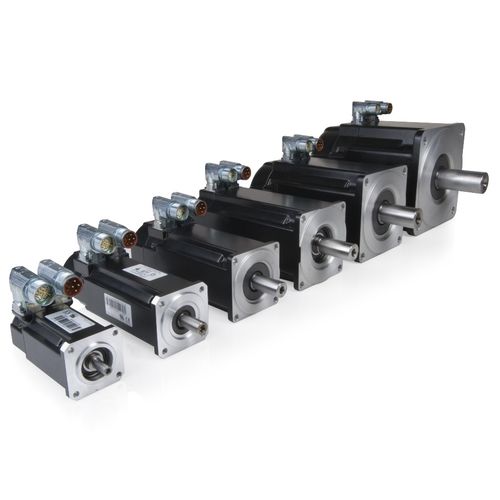

Three-phase motor 8JSA seriessynchronous400 VIP54
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- synchronous
- Voltage
- 400 V
- Protection class
- IP54, IP65
- Configuration
- with brake, compact
- Number of poles
- 6-pole
- Cooling mechanism
- self-ventilated
- Applications
- industrial
- Power
Min.: 528 W
(0.718 hp)Max.: 7,087 W
(9.636 hp)- Torque
Min.: 0.84 Nm
(0.6196 ft.lb)Max.: 52.5 Nm
(38.722 ft.lb)- Rotational speed
Min.: 1,800 rpm
(11,309.73 rad.min-1)Max.: 8,000 rpm
(50,265.48 rad.min-1)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 60 °C
(140 °F)
Description
Modern machine designs rely on compact, powerful motors.
8JSA three-phase synchronous motors have been specially developed for use in high-performance applications. The large selection of 8JS three-phase synchronous motors makes it easy for designers to achieve goals such as optimizing parts inventory, guaranteeing ease of service and minmizing footprint.
• Easier construction
• Fast axes thanks to impressive dynamic properties
• Universal application through large overload capability
• Good controllability thanks to optimized torque rippling
• Extremely easy to service
• Minimizes costs
Motor options
• Oil seal
• Holding brake
• Shaft end options
8JSA motors are self-cooling and have a long, slim design. They are connected via multiple connection boxes
