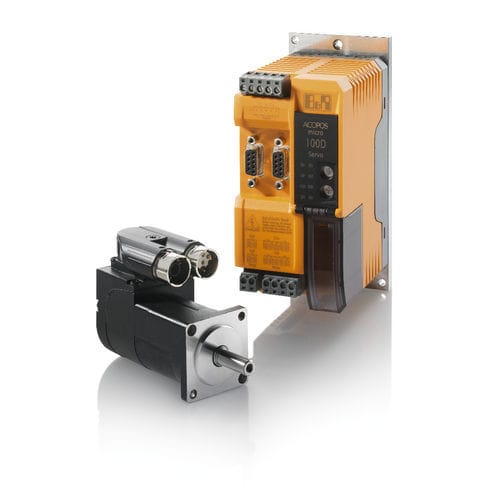

Universal motor 8LVA series

three-phase80 Vsmall

The most advanced machine concepts demand excellent dynamics and performance within the smallest amount of space possible. 8LVA three-phase synchronous motors from B&R were specially developed for these applications and provide users with the highest level of freedom in machine design by delivering maximum power density. Smooth surface The special construction of the surface allows them to be used in applications for the food and beverage industry. Depressions where liquid can collect were deliberately avoided. Highlights • Ultra compact and highly dynamic • High overload capability and low cogging • Self-locking connector system • Robust, industrial-strength connector with optimal EMC shielding • 300° swivel double angular built-in connector and single-cable solution (hybrid) • Available with optional gearbox or direct attachment of gearbox (8LVB) Connection type Double angular built-in connector The innovative connection system developed for this compact servo motor series only requires a small amount of space for cabling while still providing maximum flexibility. The 300° range of rotation allows connections to be made in an extremely flexible manner. Fast and tool-free mounting with a self-locking quick-release fastener ensures simple and secure connections for power and encoder cables. Together with this universal connector system, the new 8LVA series offers either IP54 or IP65 protection (with optional oil seal) to handle a wide range of applications in all areas. This ensures secure connections even in the most adverse conditions.
