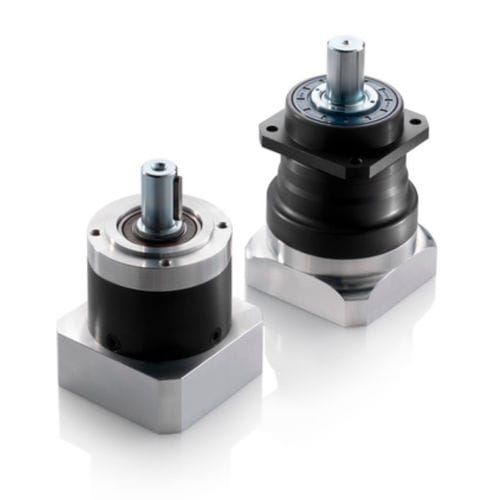

Planetary gear reducer 8G series
straight-toothedcoaxial20 - 50 Nm

planetary gear reducer
planetary gear reducer
planetary gear reducer
planetary gear reducer
planetary gear reducer
planetary gear reducer
planetary gear reducer
planetary gear reducer
planetary gear reducer
planetary gear reducer
Add to favorites
Compare this product


Characteristics

Type
planetary, straight-toothed
Shaft orientation
coaxial
Torque
20 - 50 Nm, 50 - 100 Nm, 5 - 10 Nm, 10 - 20 Nm
Number of stages
single-stage, two-stage, three-stage
Performance
high-precision
Other characteristics
flange, IP65
Rotational speed

Min.: 1,700 rpm (10,681.42 rad.min-1)

Max.: 5,000 rpm (31,415.93 rad.min-1)

Description

The cost-effective alternative to the premium series Standard series planetary gearboxes are the ideal solution for applications that don't require an extremely low level of backlash or IP65 protection. Typical applications for these gearboxes include those with high speeds and acceleration values as well as toothed belt or rack applications. In combination with honed sun and planets, the straight-toothed and fully hardened gearing guarantee high output torque and high-precision positioning. The unique building block principle used with this series makes it possible to handle all output geometries established on the market in the area of coaxial planetary gearboxes. The standard series gearboxes are available as angular planetary gearboxes, planetary gearboxes with output flange and coaxial planetary gearboxes. One-of-a-kind building block principle for standard gearboxes The standard gearboxes are single-stage for gear ratios i= 3, 4, 5, 7, 8 and 10 and have ≤8 - ≤15 arcmin backlash. In addition, these gearboxes are also offered in two-stage or three-stage designs. At the top of the product line, the premium series provides backlash ≤ 1 arcmin as an option paired with high output torques. B&R gearboxes from the standard series give you the possibility to choose between all output geometries established on the market in the area of coaxial planetary gearboxes. • This enables B&R to supply gearboxes for existing applications without having to make changes to the machine.
