- Power Transmission - Mechanical components
- Motor and Motor Control
- AC motor
- Baldor Electric Company

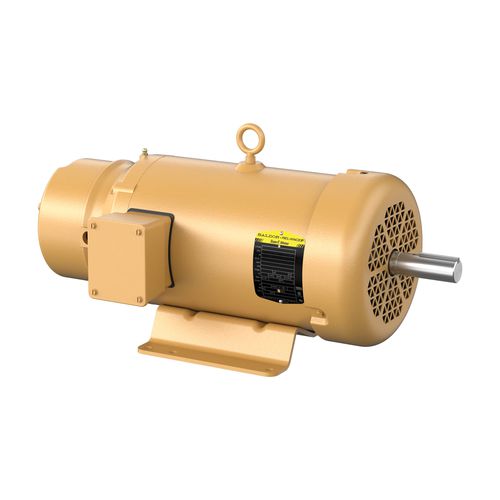

AC motor CDM seriessynchronous460 V230 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Type
- synchronous
- Voltage
- 460 V, 230 V
- Protection class
- IP56, washdown, sealed
- Configuration
- cast iron, stainless steel
- Other characteristics
- NEMA, double
- Power
Max.: 10 ch
(10 hp)Min.: 0.5 ch
(0.5 hp)- Rotational speed
1,200 rpm, 1,800 rpm, 3,600 rpm
(7,539.82 rad.min-1, 11,309.73 rad.min-1, 22,619.47 rad.min-1)
Description
Baldor-Reliance Dirty Duty motors are designed for use where additional protection is required against wet and washdown environments, corrosive environments and marine applications.
Features
56 – 215 NEMA frame
Cast iron nameplates and conduit box
300 series stainless steel shaft extension
2 part epoxy paint system passed 2,000+ hours salt fog test per ASTM B 117
Permanently lubricated, double sealed ball bearing
Suitable for use in 50degC ambient with 1.0 SF
IP56 enclosure includes: labyrinth shaft seals, gasketed conduit box and cover
Inverter ready nameplate
Meets IEEE 45 on nameplate
3 year warranty
