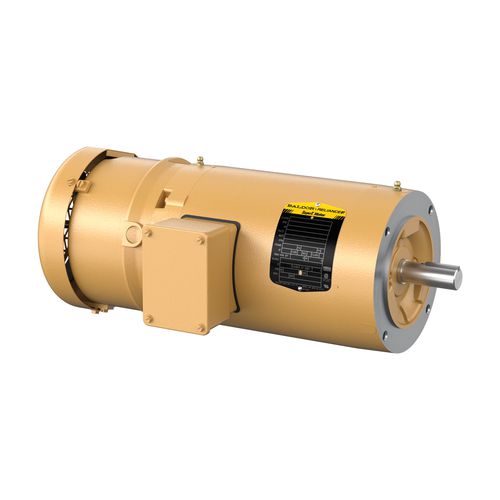

AC brake motor VEBM-T-5 seriesthree-phase575 VTEFC
Add to favorites
Compare this product
Characteristics
- Type
- three-phase, AC
- Voltage
- 575 V
- Configuration
- TEFC
- Efficiency classes
- IE3
- Number of poles
- 4-pole
- Applications
- for conveyors, for machine tools, for industrial applications, for the chemical industry, for the oil and gas industry, for compressors, for fans, for heat exchangers, for pump
- Other characteristics
- NEMA, high-performance
- Power
Min.: 1 ch
(1 hp)Max.: 3 ch
(3 hp)- Intensity
Min.: 1.3 A
Max.: 3.1 A
- Rotational speed
1,755 rpm, 1,760 rpm, 1,765 rpm, 1,770 rpm
(11,026.9902 rad.min-1, 11,058.4061 rad.min-1, 11,089.8221 rad.min-1, 11,121.238 rad.min-1)- Diameter
6.62 in, 7.86 in
- Operating temperature
40 °C
(104 °F)
Description
ABB Baldor-Reliance brake motors give customers reliable stopping power, safe load holding and easier maintenance—backed by single- and three-phase options with spring-set brakes and convenient manual release for NEMA standard BA dimensions.
Power, Control, Confidence—Built In
ABB Baldor-Reliance® brake motors give customers reliable stopping power, safe load holding and easier maintenance—backed by single- and three-phase options with spring-set brakes and convenient manual release for NEMA standard BA dimensions. Available in general-purpose, washdown and hazardous-location designs, with a drive-end cooling fan for consistent performance, these motors help improve safety, reduce downtime and keep critical equipment running smoothly in demanding environments.
Technical data
Abb Baldor-Reliance® brake motors provide controlled stopping and secure load holding through integrated braking systems and easily accessible brake coils for variable-speed drive applications.
VIDEO
Catalogs
2020 Baldor-Reliance® 501
390 Pages
