AC brake motor VBM series
three-phase208 V460 V

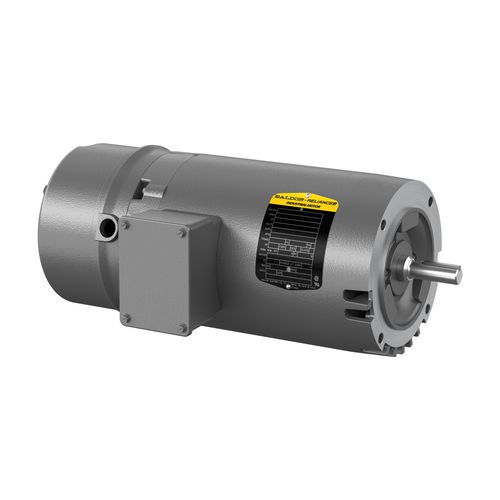

AC brake motor - VBM series - Baldor Electric Company - three-phase / 208 V / 460 V
AC brake motor - VBM series - Baldor Electric Company - three-phase / 208 V / 460 V
AC brake motor - VBM series - Baldor Electric Company - three-phase / 208 V / 460 V - image - 2
AC brake motor - VBM series - Baldor Electric Company - three-phase / 208 V / 460 V - image - 3
AC brake motor - VBM series - Baldor Electric Company - three-phase / 208 V / 460 V - image - 4
AC brake motor - VBM series - Baldor Electric Company - three-phase / 208 V / 460 V - image - 5
AC brake motor - VBM series - Baldor Electric Company - three-phase / 208 V / 460 V - image - 6
Add to favorites
Compare this product

Characteristics

Type
three-phase, AC
Voltage
460 V, 575 V, 208 V, 2300 V
Number of poles
4-pole
Applications
for conveyors, for industrial applications, for the oil and gas industry, for compressors, for fans, for heat exchangers, for pump
Other characteristics
NEMA, performance
Power

0.75 ch, 1.5 ch
(0.75 hp, 1.5 hp)

Intensity

Min.: 0.96 A

Max.: 5 A

Rotational speed

1,735 rpm, 1,750 rpm, 1,765 rpm
(10,901.3265 rad.min-1, 10,995.5743 rad.min-1, 11,089.8221 rad.min-1)

Diameter

6.61 in, 6.63 in

Operating temperature

40 °C
(104 °F)

Description

ABB Baldor-Reliance brake motors give customers reliable stopping power, safe load holding and easier maintenance—backed by single- and three-phase options with spring-set brakes and convenient manual release for NEMA standard BA dimensions. Power, Control, Confidence—Built In ABB Baldor-Reliance® brake motors give customers reliable stopping power, safe load holding and easier maintenance—backed by single- and three-phase options with spring-set brakes and convenient manual release for NEMA standard BA dimensions. Available in general-purpose, washdown and hazardous-location designs, with a drive-end cooling fan for consistent performance, these motors help improve safety, reduce downtime and keep critical equipment running smoothly in demanding environments. Technical data Abb Baldor-Reliance® brake motors provide controlled stopping and secure load holding through integrated braking systems and easily accessible brake coils for variable-speed drive applications.

VIDEO
