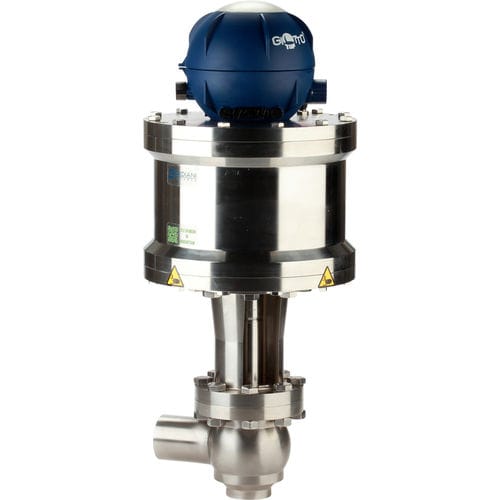

Diaphragm valve BBZQ

pneumaticcontrolseat

MAIN BENEFIT/USP Unique: the only high-pressure valve – up to 150 bar – with 3A certification Simplified maintenance for significant time savings and increased efficiency Modular and flexible: conversion to aseptic with steam barrier (BBYQ) with no changes in dimensions Sturdiness: valve bodies made from solid bar Serviceable actuator BBZQ is the only valve currently available on the market which guarantees 3A certified hygiene. This single seat valve has been designed for application in all health-hygiene sectors with pressures up to 150 bar. Made from top quality raw materials, it is characterized by an extremely modern design and sturdiness and can be installed in all those applications where maximum reliability is required for cutting off and directing a fluid or product. Extremely versatile and flexible, with no increases in dimensions, it can be easily converted to an aseptic valve by inserting a steam barrier (model BBYQ). The connection fittings are totally interchangeable with the previous version (ZQ series). STANDARD FEATURES EPDM, FKM, HNBR seals; PTFE or metal seal for the shaft VARIANTS Hydraulic damper Parabolic shutter Stroke limiter Pressure regulator
