Voltage data acquisition module BeanDevice 2.4GHz AN-mV
multi-channelportablemobile

voltage data acquisition module
voltage data acquisition module
voltage data acquisition module
voltage data acquisition module
voltage data acquisition module
voltage data acquisition module
voltage data acquisition module
voltage data acquisition module
voltage data acquisition module
voltage data acquisition module
voltage data acquisition module
voltage data acquisition module
voltage data acquisition module
voltage data acquisition module
voltage data acquisition module
voltage data acquisition module
voltage data acquisition module
voltage data acquisition module
voltage data acquisition module
voltage data acquisition module
Add to favorites
Compare this product


Characteristics

Measured physical value
voltage
Number of channels
multi-channel
Mounting
portable, mobile
Options and accessories
analog input, multi-channel, rugged, rugged, multifunction, WLAN

Description

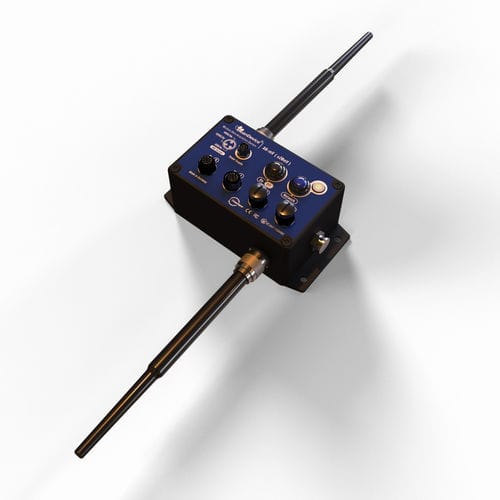

The BeanDevice® 2.4GHz AN-mV is a wireless data logger with analog voltage inputs (±20mV). Special care is taken in the analog signal conditioner design with an precision of ±0.4% (FS) and a dynamic range of 16-bits. The sensor is directly powered by a high accuracy and adjustable DC/DC converter integrated inside the device. The excitation voltage is remotely configurable through the BeanScape® (4.5 to 20V). Characterized by a waterproof (IP67/NEMA6) and rugged aluminum enclosure, an ultra-low power (30 µA in sleeping mode), an integrated data logger that can store up to 1 million data logs, as well as a maximum wireless range of 650 meters (Line of Sight), this wireless device is well suited for all types of industrial applications. Users looking for a quick and easy integration with a third party software, have choice between ModBus TCP/RTU/ASCII protocol available on our BeanGateway® 2.4GHz or OPC DA available on our BeanScape® (Premium+ & Multiview versions only). The BeanDevice® AN-mV is suitable for the following applications: •Remote monitoring •Built-in test equipment •Condition monitoring •Structural Health Monitoring (SHM)
