Triaxial inclinometer HI-INC-SR

radiopoint-to-pointMEMS

Product Overview

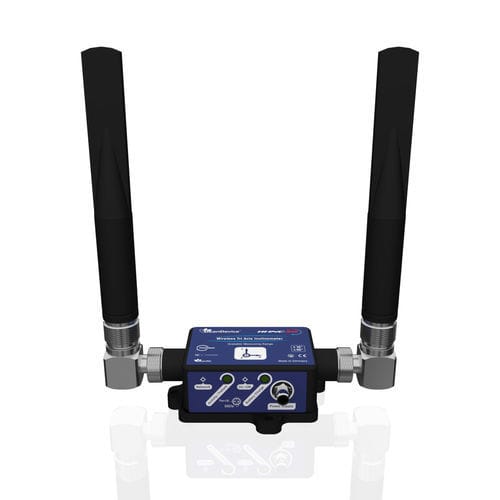

The BeanDevice HI-INC SR is a high-performance wireless tri-axis inclinometer designed with a scalable measuring range (±10 and ±90, with automatic range adjustment depending on the application). It provides exceptional precision, offering accuracy of up to ±0.01 for the ±10 range and ±0.02 for the ±90 range. Additionally, it incorporates a built-in temperature sensor, located at the device’s base, to monitor the temperature of your equipment or structure.

Key Features

• High-performance wireless tri-axis inclinometer with scalable range: ±10 (±0.01 accuracy) and ±90 (±0.02 accuracy)
• Built-in temperature sensor: Enables real-time temperature compensation and equipment/structural health monitoring
• Robust Wireless Connectivity: License-free 2.4GHz for reliable, long-range data transmission in industrial environments
• Versatile Mounting: Screw or dual-screw & magnetic mounting options for easy, secure installation on any surface
• Antenna Options: High-gain for extended range or compact radome for harsh, space-limited setups
• Durable Design: IP67 waterproof aluminum casing, lightweight and ESD-protected for rugged use
• High-Capacity Logging: Stores 8M logs and rechargeable battery for uninterrupted monitoring

High-Performance Antenna Selections

Our antenna solutions are designed to provide reliable wireless connectivity across a variety of operational environments:

• Radome Antenna: Compact, robust, ideal for space-constrained applications. Typical Wireless Range: 150m (Line of Sight), 30-60m (Non-Line-of-Sight)
• High-Gain Antenna: Optimized for maximum reach, up to 400m (Line of Sight), 60-120m (Non-Line-of-Sight)

Mounting Options for Every Environment

Deploy your sensor faster and smarter with versatile mounting solutions—engineered for any surface, any environment, and zero installation hassle.

• Standard Screw Mounting Base: Permanent & secure for long-term applications. Ideal for industrial, outdoor, or high-vibration setups.
• Dual-Mode Base (Add -M to Product Code): Magnetic screw in one—no extra parts needed. Snap on magnetically (10 kg hold) or screw for permanence. Perfect for fast deployments or reusable setups.
• Optional: 90 Wall Bracket with Bullseye: Precision alignment for vertical/wall mounting. Compatible with both mounting bases.

Software and Integration

The BeanDevice HI-INC SR comes with a complimentary version of BeanScape 2.4GHz Lite, offering:

• Real-time data visualization for quick, on-the-spot monitoring
• Data logging and backups in CSV format, enabling easy analysis and reporting
• Integration with third-party systems via Modbus TCP/RTU/ASCII protocol (via BeanGateway)

Applications

The BeanDevice HI-INC SR is suitable for a wide range of use cases, including:

• Land Surveying
• Structural Health Monitoring (SHM)
• Test and Measurement
• Railway Sleeper Monitoring
• Bridge Monitoring
• Antenna Base Station Monitoring
• Cargo Ship Monitoring
• Construction Site Monitoring
