Triaxial inclinometer HI-INC SR

radioIoTMEMS

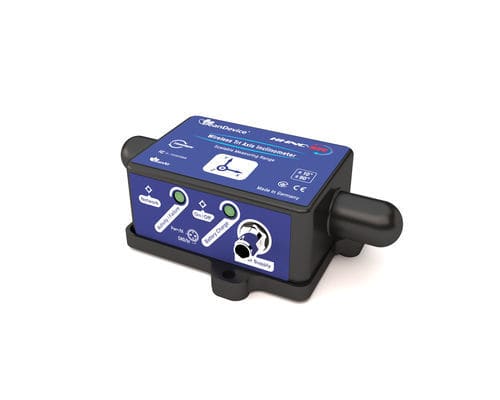

Product Overview:The BeanDevice® HI-INC SR is a high-performance wireless tri-axis inclinometer sensor based on MEMS technology, designed for industrial monitoring systems. It features a scalable measuring range (±10° and ±90°, with automatic range adjustment depending on the application) and provides exceptional precision (±0.01° for the ±10° range and ±0.02° for the ±90° range). The device also incorporates a built-in temperature sensor located at the device’s base for monitoring equipment or structure temperature.Key Features:High-performance wireless tri-axis inclinometer with scalable range: ±10° (±0.01° accuracy) and ±90° (±0.02° accuracy)Built-in temperature sensor for real-time temperature compensation and equipment/structural health monitoringRobust wireless connectivity: License-free 2.4GHz for reliable, long-range data transmission in industrial environments (IEEE 802.15.4E)Versatile mounting: Screw or dual-screw & magnetic mounting options for easy, secure installation on any surfaceAntenna options: High-gain for extended range or compact radome for harsh, space-limited setupsDurable design: IP67 waterproof aluminum casing, lightweight and ESD-protected for rugged useHigh-capacity logging: Stores up to 8 million logs and features a rechargeable battery for uninterrupted monitoringHigh-Performance Antenna Selections:Radome Antenna: Compact, robust, ideal for space-constrained applications. Typical wireless range: 150m (Line of Sight), 30-60m (Non-Line-of-Sight)High-Gain Antenna: Optimized for maximum reach, up to 400m (Line of Sight), 60-120m (Non-Line-of-Sight)Mounting Options:Standard screw mounting base: Permanent & secure for long-term applications, ideal for industrial, outdoor, or high-vibration setupsDual-mode base (add -M to product code): Magnetic + screw in one, snap on magnetically (10+ kg hold) or screw for permanence, perfect for fast deployments or reusable setupsOptional: 90° wall bracket with bullseye for precision alignment for vertical/wall mounting, compatible with both mounting basesSoftware and Integration:Comes with a complimentary version of BeanScape® 2.4GHz Lite for real-time data visualization and data logging/backups in CSV formatSupports integration with third-party systems via Modbus TCP/RTU/ASCII protocol (via BeanGateway®)Applications:Land SurveyingStructural Health Monitoring (SHM)Test and MeasurementRailway Sleeper MonitoringBridge MonitoringAntenna Base Station MonitoringCargo Ship MonitoringConstruction Site MonitoringTechnical Specifications:Inclinometer technology: Accurate and low power MEMS technologyScalable Measuring Range: User-selectable ±10° or ±90°, with automatic range adjustmentSensor resolution: 0.0055°Noise density: ±10° range: 0.0007 °/√Hz (Y), 0.008 °/√Hz (X, Z); ±90° range: 0.0012 °/√Hz (all axes)Sensor precision: ±0.01° for ±10° range, ±0.02° for ±90° rangeSensitivity temperature dependency: ±0.1 % (–25°C to +85°C)Offset LifeTime Drift (@25°C): ±0.08°Sensor frequency response (-3 dB): DC to 10 Hz (±10°), DC to 40 Hz (±90°, Auto Range), DC to 70 Hz (±90°)Calibration: Factory calibrated for ±10° and ±90°, settings backed up on sensor flash memory, user or external lab recalibration possibleIntegrated temperature sensor: Range: -40°C to +60°C, Resolution: ±0.06°C, Precision: ±1°CWireless protocol stack: IEEE 802.15.4E, ISM 2.4GHz, 16 channels, 250 Kbits/s data rate, +18 dBm TX power, -104 dBm receiver sensitivityMaximum radio range: High Gain Antenna: 400m (LOS), 60-120m (NLOS); Radome Antenna: 150m (LOS), 30-60m (NLOS)Antenna diversity: High Gain: 2 x N-Type Antenna 5dBi, IP67; Radome: 2 x Antenna 1.9 dBi, IP67Embedded data logger: Up to 8 million data points, 20 minutes to download full memory wirelesslyTimeSync function: Clock synchronization accuracy ±2.5 ms (at 25°C), crystal tolerance ±10ppmCasing: Aluminum AL6061, waterproof IP67 (Nema 6), dimensions 100 x 71 x 38 mm (without antennas), weight: 240g (screw mounting, radome), 265g (magnetic, radome), 440g (screw, high gain), 465g (magnetic, high gain)Shock resistance: 150g during 50 msOperating temperature: RB: -40°C to +60°C; XT: -40°C to +75°C (battery discharge)Maximum humidity: 90 %RHCertifications: CE, FCC, ARIB STD-T66 Ver 3.6, ROHSBase plate: Aluminum black anodized AL 7075, rugged three-point-mounting, screw mounting (3 x M5, 5 ±1Nm), magnet mounting (steel surface)Power supply: Integrated lithium-polymer rechargeable battery (2 Ah), industrial battery charger (8-28VDC), overvoltage/overcurrent/short-circuit/undervoltage protection, battery temperature monitoring, current consumption: 30-40 mA (acquisition), 55 mA (radio transmission), Included Accessories:1x Magnet to Power ON/Power OFF the device1x M8 Cap for Power SupplyOptional Accessories:External power supply (wall plug-in, switchmode 12V @ 1.25A, sealed M8 plug, IP67)Standalone solar system (various references for RB and XT versions)External primary cell in waterproof IP67 casing (battery box with 3 x 6500mAh Li-SOCL2 cells, Ref: PRIM-XTENDER)90° bracket for mounting (Ref: SMART-BRACK-MNT)M8 extension cables (2m, 5m, 10m, Ref: CBL-M8-2M, CBL-M8-5M, CBL-M8-10M)Calibration certificate (Ref: CERT-CAL-SMART)Warranty: 2-year limited warranty for defects due to faulty materials or workmanship.
