2-axis inclinometer / digital / capacitive / MEMS

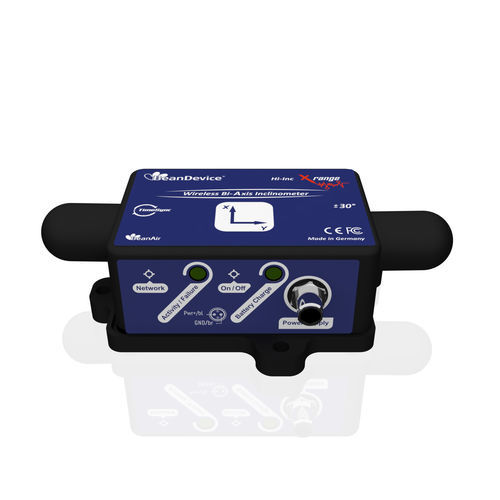

BeanDevice 2.4GHz HI-INC XRange

{{requestButtons}}

Characteristics

  • Number of axes:

    2-axis

  • Output:

    digital

  • Technology:

    MEMS, capacitive

  • Other characteristics:

    high-precision, rugged, high-resolution, wireless, waterproof, temperature-compensated, with aluminum housing, with integrated data logger, for geophysics applications

  • Inclination:

    Min.: -15 °

    Max.: 30 °

  • Resolution:

    0.001 °

Description

Available in four versions (measurement range: ±15° or ±30° , screw/magnetic mounting), the BeanDevice® 2.4GHz HI-INC XRange is a wireless inclinometer with integrated data logger.
Characterized by a waterproof (IP67/Nema 6) and a lightweight aluminum casing (100x60x31mm, 217g), an ultra-low power (30 µA in sleeping mode), an integrated data logger that can store up to 8 million data logs, as well as a tiny radome omni antenna enabling a maximum wireless range of 500 meters (L.O.S.), this wireless accelerometer is well suited for all types of industrial applications.
While the vast majority of wireless sensors show their limits in harsh industrial environment, the BeanDevice® 2.4GHz HI-INC XRange integrates an innovative antenna diversity design, boosting the radio link quality in environments subject to random and diverse disturbances.
The combination of a high performance MEMS inclinometer and a 5th order anti-aliasing filter (remotely programmable by the user) enables a great accuracy (±0.057° for the version ±15°).
Compared to the standard version, the BeanDevice® 2.4GHz HI-INC XRange comes with screw/magnetic mounting and a higher data logger capacity.
Our outstanding TimeSync® function allows to reach a time-synchronization of ±2.5ms over the wireless sensor networks. It contributes to enhance user experience about data fusion and modal analysis.
Users looking for a quick and easy integration with a third party software, have choice between ModBus TCP/RTU/ASCII protocol available on our BeanGateway® 2.4GHz or OPC DA available on our BeanScape® 2.4GHz (Premium+ & Multiview versions only).
