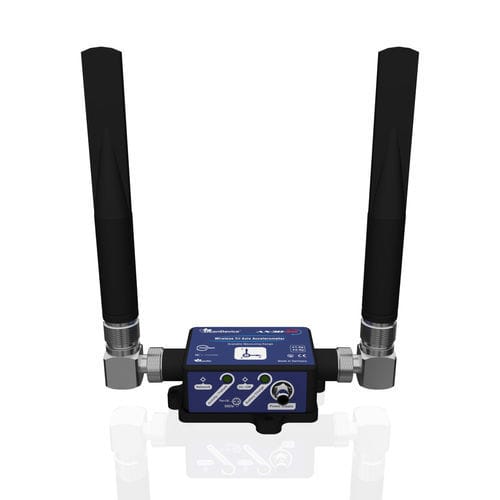

Triaxial accelerometer AX-3DS HG

MEMSwirelesssmart

Product Overview
Wireless IoT Accelerometer Sensor - Shock and Impact Monitoring
Model: BeanDevice® 2.4GHz AX-3DS
Available in versatile ranges (±2/4/8g or ±6/12/24g), the BeanDevice® 2.4GHz AX-3DS is a high-performance wireless IoT accelerometer for shock measurement, featuring an integrated data logger. Its Smart Shock Detection (SSD) technology wakes the device from deep sleep in under 10ms upon detecting shocks, instantly transmitting data to the BeanGateway® coordinator for real-time monitoring. Easily configure shock thresholds and hysteresis via BeanScape® software.

Key Features

• High-performance wireless IoT accelerometer dedicated to shock and impact monitoring
• Scalable measurement range: ±6g/±12g/±24g or ±2g/±4g/±8g
• Robust Wireless Connectivity: License-free 2.4GHz for reliable, long-range data transmission in industrial environments
• Versatile Mounting: Screw or dual-screw & magnetic mounting options for easy, secure installation on any surface
• Antenna Options: High-gain for extended range or compact radome for harsh, space-limited setups
• Durable Design: IP67 waterproof aluminum casing, lightweight and ESD-protected for rugged use
• High-Capacity Logging: Stores 1M logs and rechargeable battery for uninterrupted monitoring

High-Performance Antenna Selections
Our antenna solutions are designed to provide reliable wireless connectivity across a variety of operational environments:

• Radome Antenna: Compact, suited for space constraints, robust performance. Typical Wireless Range: 150m (Line of Sight), 30-60m (Non-Line-of-Sight)
• High-Gain Antenna: Optimized for maximum reach, ensuring signal integrity over extended areas. Typical Wireless Range: 400m (Line of Sight), 60-120m (Non-Line-of-Sight)

*Line-of-Sight (LOS) range is based on field tests conducted with the device antenna oriented vertically and a BeanGateway® installed on a 10-meter mast utilizing a 9dBi antenna.

Mounting Options for Every Environment
Deploy your sensor faster and smarter with versatile mounting solutions—engineered for any surface, any environment, and zero installation hassle.

• Standard Screw Mounting Base: Permanent & secure for long-term applications. Ideal for industrial, outdoor, or high-vibration setups.
• Dual-Mode Base (Add -M to Product Code): Magnetic + screw in one—no extra parts needed. Snap on magnetically (10+ kg hold) or screw for permanence. Perfect for fast deployments or reusable setups.
• Optional: 90° Wall Bracket with Bullseye: Precision alignment for vertical/wall mounting. Compatible with both mounting bases.

Main Features (Table)
Main Features
• High-performance wireless IoT accelerometer dedicated to shock and impact monitoring
• Scalable measurement range: ±6g/±12g/±24g or ±2g/±4g/±8g
• Robust Wireless Connectivity: License-free 2.4GHz for reliable, long-range data transmission in industrial environments
• Versatile Mounting: Screw or dual-screw & magnetic mounting options for easy, secure installation on any surface
• Antenna Options: High-gain for extended range or compact radome for harsh, space-limited setups
• Durable Design: IP67 waterproof aluminum casing, lightweight and ESD-protected for rugged use
• High-Capacity Logging: Stores 1M logs and rechargeable battery for uninterrupted monitoring

Ordering Information
PRODUCT REFERENCE: BND-2.4GHZ-AX3DS -MR-RB-MO-HG
MR – Measurement Range:
- 24G: ±6/12/24g measurement range
- 8G: ±2/4/8g measurement range
PS - Power Supply: RB : rechargeable battery
MO - Mounting Option: SCM - Screw Mounting base, MM - Magnet Mounting base (leave empty if no mounting option)
HG: High Gain External Antenna 5dBi (if left blank, Integrated Radome Antenna will be provided)
Example 1: BND-2.4GHz-AX3DS-24G-RB
Wireless Accelerometer with ±6/12/24g measurement range, rechargeable battery
Example 2: BND-2.4GHz-AX3DS-8G-RB-SCM
Wireless Accelerometer with ±2/4/8g measurement range, rechargeable battery, screw mounting option
Stock Status: Available

Applications

• Bridge Monitoring
• Shock Monitoring on Wheel
• Shock Monitoring on Pantograph

Included Accessories

• M8 plastic cap: 1 x M8 Cap for Power Supply
• Magnet for Power ON | Power OFF: 1pcs Magnet

Optional Accessories and Services

• Solar Panel Kit: X-Solar 14ah or 7ah | Solar Panel with Solar Charging Controller
• Molded Cable, M8 Male Plug to Bare wire: For sensor power supply (8-28VDC), PVC, Waterproof-IP67, Cable length: 2m, 5m, 10m
• Mechanical Mounting Options: 90° Bracket with bullseye level for BeanDevice (Xrange smartsensor)
• Switch-Mode Power Supply 12V with M8-3Pins plug: Cable Length 1.5m, Waterproof-IP67
• Calibration Certificate: Provided by Beanair GmbH, static calibration method on granite surface plate DIN876

Certifications & Approvals

• FCC CERTIFICATE SMARTSENSOR
• 2.4GHz CE CERTIFICATION
• Limited warranty certificate
• REACH Regulation Declaration
• Beanair® ROHS

Warranty
2 YEAR LIMITED WARRANTY: The product will be repaired, without charge, for any defects due to faulty materials or workmanship within the specified warranty.

Technical Documents
Datasheet, Selection Guide, Quick Start, User Manual, Drawing, Calibration Files, Examples of Log Files, Battery Life simulation, Step File.

Characteristics / Technical Specifications

• Measurement Range: ±2/4/8g or ±6/12/24g
• Wireless Frequency: 2.4GHz (license-free)
• Data Logger: Integrated, stores up to 1 million logs
• Shock Detection: Smart Shock Detection (SSD), wakes in under 10ms
• Mounting: Screw, dual-screw, magnetic, optional 90° wall bracket
• Antenna: High-gain (5dBi) or compact radome (1.9dBi)
• Enclosure: IP67 waterproof aluminum, ESD-protected
• Power: Rechargeable battery
• Software: BeanScape® for configuration and monitoring
• Typical Wireless Range: Radome Antenna: 150m LOS, 30-60m NLOS; High-Gain Antenna: 400m LOS, 60-120m NLOS
• Accessories: M8 cap, magnet, solar panel kit, molded cable, power supply, calibration certificate
• Certifications: FCC, CE, ROHS, REACH
