Data acquisition starter kit BeanDevice® 2.4GHZ AN-V
IoT

data acquisition starter kit
data acquisition starter kit
Add to favorites
Compare this product


Characteristics

Type
data acquisition
Other characteristics
IoT

Description

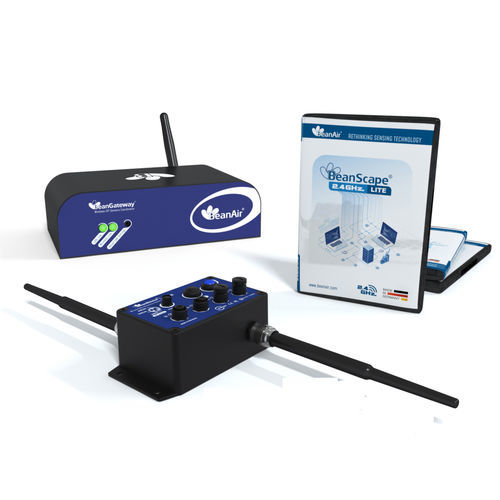

This wireless IOT DAQ instrument starterkit includes everything you need to setup quickly your wireless monitoring application: • Wireless Receiver/Gateway with LAN Output (Ref: BeanGateway® Indoor) • Wireless IOT data acquisition instrument with analog voltage inputs (±5V/±10V) ( ref: BeanDevice® AN-V ) • Free software to collect and display in real-time data measurement from the wireless DAQ system (Ref: BeanScape® 2.4GHZ version) • AC/DC Power Adapter ( US or EUR or UK plugs) for charging the battery or to be used constantly Wireless DAQ main features : • Analog inputs ±5V or ±10V (4 channels) • Measurement precision less than ± 0.01% on the full scale • Integrated sensor power supply, software configurable 4.5V to 20V (i.e. no need external power for your sensors) • Global License-free band 2.4GHZ, with maximum radio range 650 meters (can be extended to 1km with higher gain antenna) • Waterproof and rugged IP67 aluminum casing (Nema 6) • Time-synchronized data acquisition (±2.5ms of accuracy) • Rechargeable Lithium-Polymer battery 2200 mAh providing a battery life up to 12 months • Embedded data logger : up to 1 million data points with events dating This Wireles DAQ system is suitable for sensors with analog voltage output, mostly sensors integrating a potentiometer. Beanair products are Made in Germany and are certified CE/FCC/Giteki

VIDEO

Catalogs

No catalogs are available for this product.

See all of BeanAir GmbH‘s catalogs

Exhibitions

Meet this supplier at the following exhibition(s):

Sensor+Test 2024
Sensor+Test 2024

11-13 Jun 2024 Nürnberg (Germany)

  • More information
