Rotary vane compressor DT 4.25 Kairelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Type
- air
- Power source
- electric
- Portability
- stationary
- Application domain
- industrial
- Other characteristics
- compact
- Pressure
1 bar
(14.5 psi)- Flow
25 m³/h, 30 m³/h
(882.87 ft³/h, 1,059.44 ft³/h)- Power
1.1 kW, 1.3 kW
(1.5 hp, 1.77 hp)- Length
545 mm
(21.46 in)- Width
Min.: 318 mm
(12.52 in)Max.: 328 mm
(12.91 in)- Height
293 mm
(11.54 in)- Weight
Min.: 36.5 kg
(80.5 lb)Max.: 39 kg
(86 lb)- Noise level
67 dB
Description

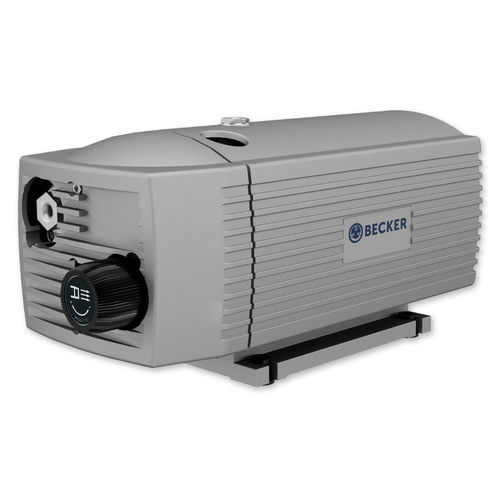

The DT 4.25 K is a low pressure, dry-running displacement pump designed to operate on a continuous duty basis. The rotary vane compressor utilises self-lubricating, graphite composite vanes, requires only minimal maintenance, and requires no oil change.
Built-in, large inlet filter
Pressure regulating valve
Built-in aftercooler
Vibration isolators
Features
100% dry-running (oil-less) operation
Quiet operation
Long vane life
Continuous duty rated
Air-cooled
Single shaft direct drive
Compact design
Variety of motors available
Benefits
Low operation and maintenance costs
No cycling times
Quiet operation – no silencer enclosures necessary
Small footprint for space savings
Straightforward construction for fast and easy service on-site to reduce downtime
