Rotary vane compressor DTLF 2.500airelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Applications
- discharge, service, construction
- Other characteristics
- compact, small
- Pressure
1.8 bar
(26.11 psi)- Flow
515 m³/h, 600 m³/h
(18,187.05 ft³/h, 21,188.8 ft³/h)- Power
30 kW, 36 kW
(40.79 hp, 48.95 hp)- Length
Min.: 1,466 mm
(58 in)Max.: 1,535 mm
(60 in)- Width
747 mm
(29 in)- Height
579 mm
(23 in)- Weight
248 kg
(546.7 lb)- Noise level
81 dB, 82 dB
Description

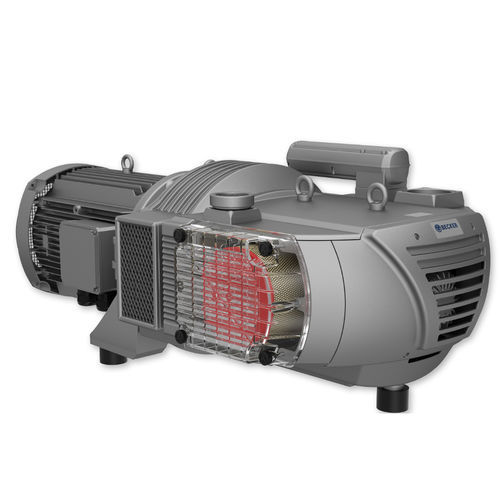

The DTLF 2.500 is a low pressure, dry-running displacement pump designed to operate on a continuous duty basis. The rotary vane compressor utilises self-lubricating, graphite composite vanes, requires only minimal maintenance, and requires no oil change.
Built-in, large inlet filter with clear cover
Pressure relief respectively safety valve
Vibration isolators
Discharge silencers
Features
100% dry-running (oil-less) operation
Quiet operation
Long vane life
Continuous duty rated
Air-cooled
Single shaft direct drive
Compact design
Variety of motors available
Benefits
Low operation and maintenance costs
No cycling times
Quiet operation – no silencer enclosures necessary
Small footprint for space savings
Straightforward construction for fast and easy service on-site to reduce downtime
