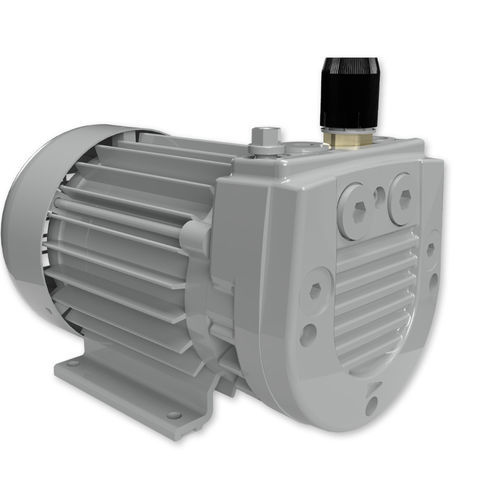

Rotary vane compressor DT 4.4airelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Applications
- service, construction
- Other characteristics
- compact, small
- Pressure
1 bar
(14.5 psi)- Flow
4.2 m³/h, 4.9 m³/h
(148.32 ft³/h, 173.04 ft³/h)- Power
0.18 kW, 0.22 kW
(0.24 hp, 0.3 hp)- Length
222 mm
(9 in)- Height
166 mm
(7 in)- Weight
7 kg
(15.4 lb)- Noise level
60 dB, 61 dB
Description
The DT 4.4 is a low pressure, dry-running displacement pump designed to operate on a continuous duty basis. The rotary vane compressor utilises self-lubricating, graphite composite vanes, requires only minimal maintenance, and requires no oil change.
Built-in, large inlet filter
Pressure regulating valve
Features
100% dry-running (oil-less) operation
Quiet operation
Long vane life
Continuous duty rated
Air-cooled
Single shaft direct drive
Compact design
Variety of motors available
Benefits
Low operation and maintenance costs
No cycling times
Quiet operation – no silencer enclosures necessary
Small footprint for space savings
Straightforward construction for fast and easy service on-site to reduce downtime
