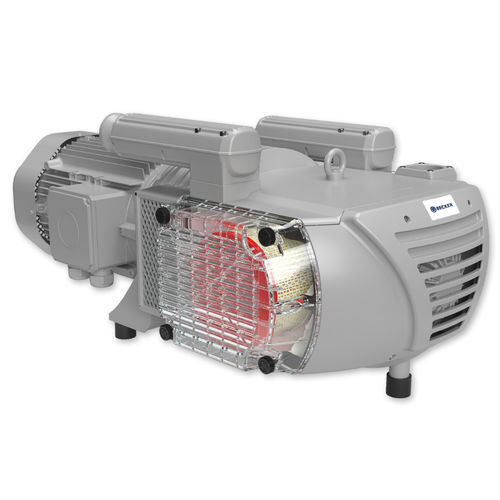

Rotary vane compressor DTLF 2.250 Kairelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Applications
- service, construction
- Other characteristics
- compact, small
- Pressure
1.8 bar
(26.11 psi)- Flow
240 m³/h, 284 m³/h
(8,475.52 ft³/h, 10,029.37 ft³/h)- Power
15 kW, 18 kW
(20.39 hp, 24.47 hp)- Length
Max.: 1,300 mm
(51 in)Min.: 1,174 mm
(46 in)- Width
708 mm
(28 in)- Height
268 mm
(11 in)- Weight
175 kg
(385.8 lb)- Noise level
84 dB, 85 dB
Description
The DTLF 2.250 K is a low pressure, dry-running displacement pump designed to operate on a continuous duty basis. The rotary vane compressor utilises self-lubricating, graphite composite vanes, requires only minimal maintenance, and requires no oil change.
Built-in, large inlet filter with clear cover
Pressure relief respectively safety valve
Vibration isolators
Discharge silencers
Weight - 165 kg without motor
Features
100% dry-running (oil-less) operation
Quiet operation
Long vane life
Continuous duty rated
Air-cooled
Single shaft direct drive
Compact design
Variety of motors available
Benefits
Low operation and maintenance costs
No cycling times
Quiet operation – no silencer enclosures necessary
Small footprint for space savings
Straightforward construction for fast and easy service on-site to reduce downtime
