Rotary vane compressor DTLF 2.200airelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Type
- air
- Power source
- electric
- Portability
- stationary, mobile
- Application domain
- industrial
- Other characteristics
- compact
- Pressure
1.8 bar, 2 bar
(26.11 psi, 29.01 psi)- Flow
174 m³/h, 216 m³/h
(6,144.75 ft³/h, 7,627.97 ft³/h)- Power
11 kW, 13.2 kW
(14.96 hp, 17.95 hp)- Width
644 mm
(25 in)- Height
527 mm
(21 in)- Weight
165 kg
(363.8 lb)- Noise level
82 dB, 83 dB
Description

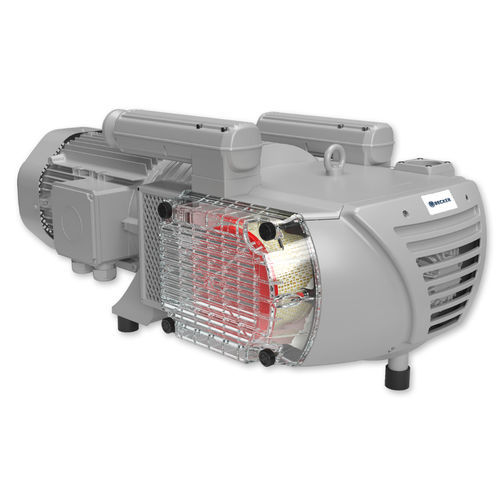

The DTLF 2.200 is a low pressure, dry-running displacement pump designed to operate on a continuous duty basis. The rotary vane compressor utilises self-lubricating, graphite composite vanes, requires only minimal maintenance, and requires no oil change.
Built-in, large inlet filter with clear cover
Pressure relief respectively safety valve
Vibration isolators
Discharge silencers
Features
100% dry-running (oil-less) operation
Quiet operation
Long vane life
Continuous duty rated
Air-cooled
Single shaft direct drive
Compact design
Variety of motors available
Benefits
Low operation and maintenance costs
No cycling times
Quiet operation – no silencer enclosures necessary
Small footprint for space savings
Straightforward construction for fast and easy service on-site to reduce downtime
