Rotary vane compressor KDT 3.80airelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Applications
- service, construction
- Other characteristics
- compact, small
- Pressure
1.5 bar
(21.76 psi)- Flow
66 m³/h, 77 m³/h
(2,330.77 ft³/h, 2,719.23 ft³/h)- Power
4 kW, 4.8 kW
(5.44 hp, 6.53 hp)- Length
Max.: 863 mm
(34 in)Min.: 704 mm
(28 in)- Width
353 mm
(14 in)- Height
328 mm
(13 in)- Weight
49 kg
(108 lb)- Noise level
74 dB, 76 dB
Description

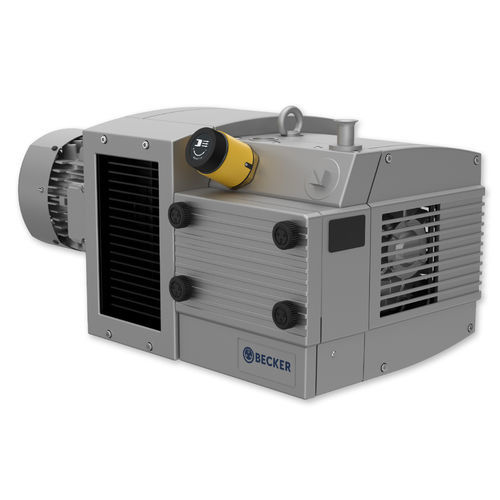

The KDT 3.80 is a low pressure, dry-running displacement pump designed to operate on a continuous duty basis. The rotary vane compressor utilises self-lubricating, graphite composite vanes, requires only minimal maintenance, and requires no oil change.
Built-in, large inlet filter
Pressure regulating valve
Vibration isolators
Features
100% dry-running (oil-less) operation
Quiet operation
Long vane life
Continuous duty rated
Air-cooled
Single shaft direct drive
Compact design
Variety of motors available
Benefits
Low operation and maintenance costs
No cycling times
Quiet operation – no silencer enclosures necessary
Small footprint for space savings
Straightforward construction for fast and easy service on-site to reduce downtime
