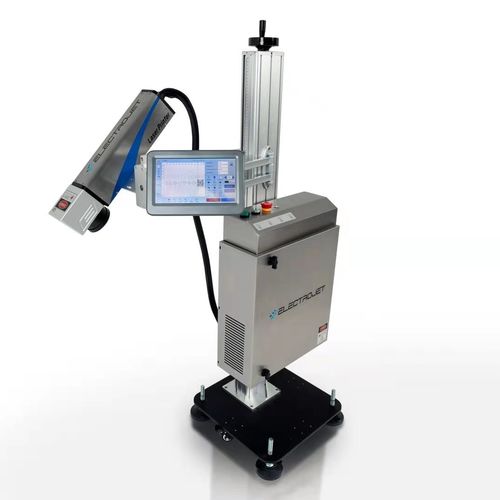

Fiber laser marking machine HF200/300

inkjetmetalplastic

Compared with the inkjet marking methods, HF200 industrial laser marking system’s superiority lies in: a wide range of applications, a variety of substances (metal, glass, ceramics, plastics, leather, etc). The working principle of HF200 laser marking machine is to reveal the deep material through the evaporation of surface material, or to cause chemical and physical changes in the surface of various materials through the laser light. The marks made by laser machines are permanent and high quality. The technical specifications of HF200 industrial laser marking machine, Language: English, Chinese, Spanish Marking Field: 90mmX90mm (standard) 50mmX50mm~175mmX175mm (Optional) Working distance: 13cm Production line speed: ＜120m/min (depending on substrates) User interface: 10″ color touchscreen stationary/ handheld (standard), PC (Optional) I/O Connectivity: 2 USB Machine material: Aluminum Cooling system: Air cooling Weight: 35.5KG Dimension: 678mm x 180mm x 135mm Ambient temperature: 0~40℃ Operating temperature: 0~60℃
