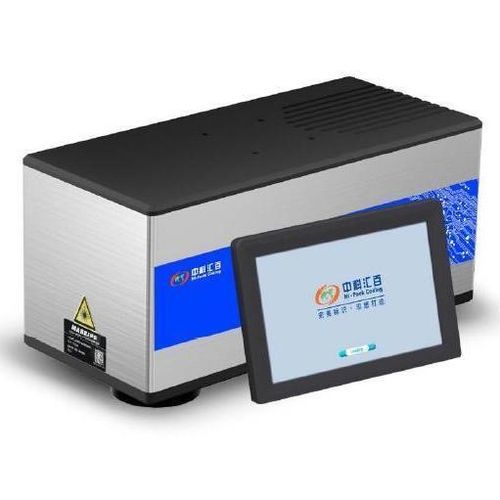

UV laser marking and engraving machine HUV500T-YTB

plasticmetalglass

Product overview
Compact integrated UV laser marking system engineered for inline integration. The HUV500T-YTB performs reliable coding across a broad range of substrates (over 300 materials) including low-adhesion plastics, glass, ceramics, coated metals, flexible PCBs and aluminum–plastic panels.

Applications and compatible materials

• Plastics: PE, PET, PP and other low-absorption polymers.
• Glass and ceramics.
• Coated metals and metal-plated surfaces.
• Flexible printed circuit boards and aluminum–plastic panels.

Key features

• Sealed 355 nm UV laser, output ≥5W; suitable for fine surface marking.
• Marking area 50×50 mm with 40 mm focal length; minimum line width 0.03 mm.
• Marking speed up to 12000 mm/s; modes: static, simulate, encoder.
• Repeated positioning accuracy 0.01 mm; production line speed up to 130 m/min (material dependent).
• 10.2" color touch screen with Linux OS and multi-user permissions.
• Water cooling; power supply 220 VAC, 50 Hz, 1200 W.

Technical specifications

• Machine material: Stainless steel with sandblasted alumina structure.
• Laser type: Sealed UV laser, wavelength 355 nm, output power ≥5 W.
• Marking area: 50 mm × 50 mm; focal length: 40 mm; minimum line width: 0.03 mm.
• Accuracy: Repeated positioning accuracy 0.01 mm.
• Supported formats: BMP, DXF, HPGL, JPEG, PLT; fonts: Chinese, English, numbers, traditional Chinese.
• Barcodes: CODE39, CODE128, CODE126, QR, Z-Code (optional).
• Interface: 10.2" color touch screen; OS: Linux; administrative multi-user permissions.
• Signals & protections: Start, printing, completed, fault alarm; data protection on power-off; marking missed detection; overspeed alarm; automatic intersection removal.
• Environmental requirements: Ambient temperature 0°C–45°C; humidity ≤95% non-condensing; no vibration.
