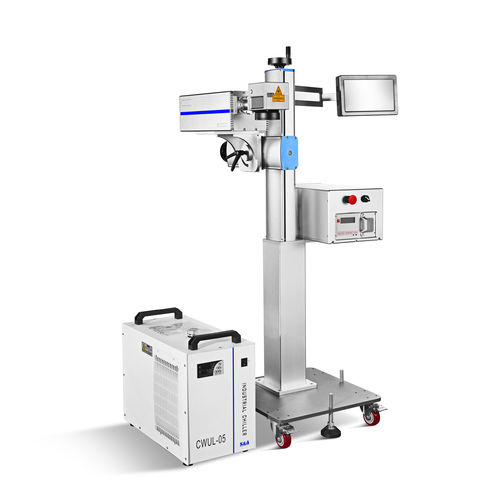

UV laser marking machine HUV500C

metalplasticaluminum

UV laser marking machine HUV500C is one of new coding and marking products of Beijing Hi-Pack Coding Ltd. Compared with small character inkjet printers and other type of laser marking systems, UV lasers have a definite lead in micromachining because of their shorter wavelengths than infrared and visible lasers, Particularly in the processing control of heat sensitive materials. Model HUV500C - 1. Operating Interface: 10" colour touch screen (fixed/handheld) 2. Laser Type: ND: YVO4, Semiconductor End-pumped 3. Cooling System:Water cooling 4. Laser deflection mirror: High precision double-dimensional, high-speed scanning mirror 5. Language:English, German, Japanese, Korean, Portuguese, Spanish, Chinese, etc. 6. Marking format:AutoCAD industry standard fonts (extensible definition) nearly 30 2D codes (QR, DM etc.) and barcodes (39CODE128 32 codes, etc.) vector type logo, symbol, line, ring, corner, reverse rotation order and batch number, etc. 7. Marked content:Chinese, English, number, logo, date and time, Serial numbers, various standard CAD line fonts, customizable extensions. 8. Production line speed /minimum marking line width:＜80m/min / 0.04mm 9. Marking line/ Character size:Adjustable in marking range 10. Marking area:50mm X 50mm~175mm X 175mm (Factory fitted with 110mm X 110mm as standard) 12. Output power:3W / 5W / 10W 13. Marked focal length / Dust protection:Two-point focus or without two-point focus / Sealed 14. Laser wavelength / precise positioning: - 355nm / 0.003mm 15. Power consumption /marking of database information:<500W (220VAC,50HZ) / Database information marking available.
