Fiber laser marking system HF series

automaticfor continuous production linesfor non-metals

Overview

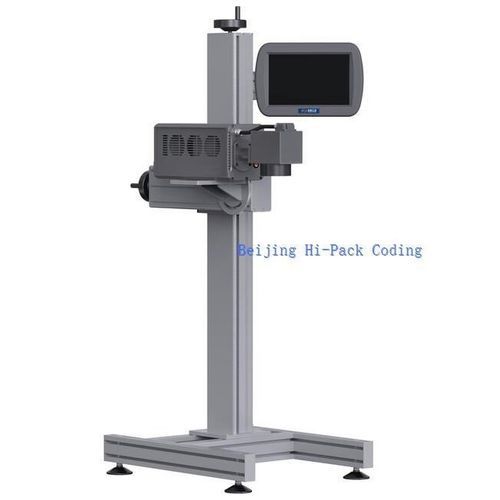

Hi-Pack Coding fiber laser marking system combines a stable fiber laser source with a high-speed dual-axis galvanometer to deliver consistent high-resolution marking for metals and selected non-metal substrates. The system integrates a 10.2" color touch screen, photocell sensor and adjustable lifting bracket for inline or stand-alone use. Suitable for production lines requiring precise, high-speed marking and reliable registration.

Models

• HF200C-YTB
• HF300C-YTB

Marking formats and content
Supports AutoCAD industry standard fonts (extensible), vector logos, symbols, lines, rings, corner marks, reverse sequence, batch numbers, Chinese and English characters, numerals, logos, date/time, serial numbers and customizable CAD font extensions.

Technical specification table
Model: HF200C-YTB, HF300C-YTB
Laser type: Fiber laser
Galvanometer: High-precision dual-axis high-speed scanning galvanometer
Marking area: 110 mm x 110 mm
Max production line speed: ≤ 130 m/min (material dependent)
Marking speed / focal length: ≤ 12,000 mm/s; f = 165 mm
Output power / Voltage: HF200C-YTB ≥ 20 W; HF300C-YTB ≥ 30 W; 220 VAC, 50 Hz
Power consumption: 400 W
Operating interface: 10.2" color touch screen (fixed or handheld)
Cooling: Air cooling
Laser wavelength / Positioning accuracy: 1064 nm; 0.001 mm
Operating environment: Ambient temperature 0°C–45°C; Humidity ≤ 95%
Dimensions (L x W x H): 550 mm x 140 mm x 165 mm

Characteristics / Technical specifications

• Models: HF200C-YTB, HF300C-YTB
• Laser type: Fiber laser
• Marking area: 110 x 110 mm
• Max line speed: ≤ 130 m/min
• Marking speed: ≤ 12,000 mm/s
• Output power: HF200C ≥ 20 W; HF300C ≥ 30 W
• Power consumption: 400 W; Voltage: 220 VAC, 50 Hz
• Interface: 10.2" color touch screen (fixed/handheld)
• Cooling: Air cooling
• Wavelength: 1064 nm; Positioning accuracy: 0.001 mm
• Operating environment: 0°C–45°C; Humidity ≤ 95%
• Dimensions: 550 x 140 x 165 mm
