CO2 laser marking and engraving machine HC300 series

plasticpaperglass

Product overview

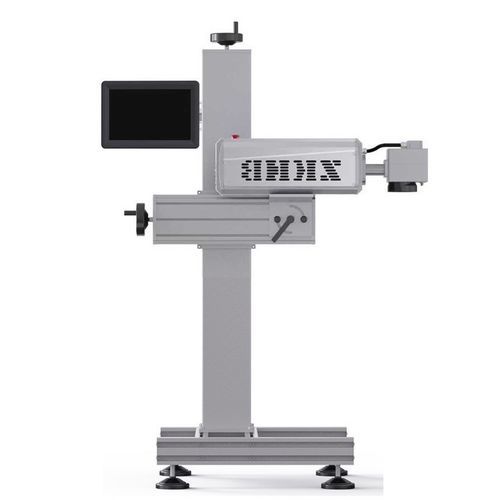

Hi-Pack Coding CO2 laser marking system HC300-YTBA integrates a hermetic metal RF CO2 laser and galvanometer scanner to provide precise, high-speed marking for production lines. The unit features a 10.2" color touch screen, photocell sensor and adjustable lifting bracket for easy inline integration.

Key features

• Marking area: 110mm x 110mm
• Output power options: ≥30W, ≥60W
• Hermetic metal RF CO2 laser tube; standard wavelength 10.6μm (10.2μm, 9.3μm optional)
• Minimum marking line width: 0.03mm; positioning accuracy: 0.01mm
• Operating interface: 10.2" touch screen (fixed or handheld)
• Cooling: air cooling (30W) or water cooling (60W)
• Marking modes: Static, Analog, Encoder

Technical specifications

• Model: HC300-YTBA (CRD Laser). HC300C-YTBA
• Operating system: Linux
• Supported formats: BMP/DXF/HPGL/JPEG/PLT/CODE39/CODE128/CODE126/QR/Z-Code (optional)
• Production line speed: 10–130 m/min (material dependent)
• Focusing: red light positioning; focal length 145mm
• Power consumption: < 800W (AC 220V, 50Hz)
• Laser wavelength: 10.6μm standard; 10.2μm, 9.3μm optional
• Marking content: multi-language text, numbers, logos, dates, serial numbers, standard CAD line fonts, custom graphics
• Environmental requirements: ambient temperature 0°C–45°C; humidity ≤95%

Applications

• Product coding on packaging and labels
• Marking plastics, glass, paper, coated materials and selected non-metal surfaces
• Traceability: serial numbers, batch codes and dates for manufacturing lines
• Integration with high-speed automated lines and conveyors
