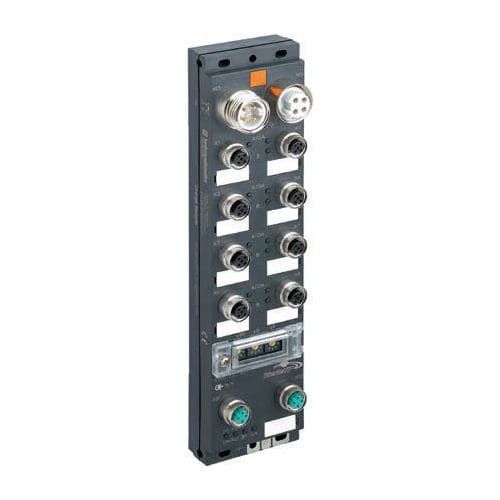

Order No. :109630
Type :0980 ESL 711
Description :EtherNet/IP™ Device with 16 digital input channels, M12 socket, rotary address switches for addressing, M12 LAN-Ports, D-coded, 7/8" power supply
Availability :available
NoteTbe application of these products in harsh environments should always be checked before use. Spécifications subject to alteration.
Color of housingblack
Product characteristicsVibration resistence, Oil résistance
Classification
Belden classI/O Modules with Digital Inputs (DI)
Belden brandLumberg-Automation
Mechanical data
Weight390 g
Dimensions (W x H x D)60 mm x 243 mm x 39.5 mm
Environmental conditions
Environmental température-10 °C... 60°C
Degree of protection (IP), mountedIP67
Materials
Housing material / Molded bodyPBT
Approvals
RoHS 2002/95/EG compliantyes
Bus System
Fieldbus SystemEthemet/IP™
Bus ConnectionM12, Dcoded
Number of contacts4
Transmission rate10/100 Mbps
Transmission method100BASE-TX
Address range0 dec.... 255 dec.
Rotary address switches0 dec.... 255 dec.
Default addressOdec.
