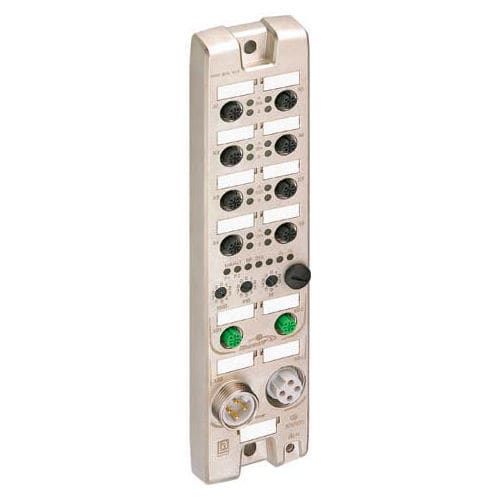

Digital I/O module 0980 ESL 811-EIP

EtherNet/IP16-I/Onetwork

Order No.:934 691-001 Type:0980 ESL 811-EIP 16DI-M12-R Description:EtherNet/IP™ device with 16 digital input channels, Zinc diecast housing, M12 sockets for network ports and I/O slots, rotary switch for setting the network parameters, M12 LAN-Ports, D-coded and 7/8" power supply Availability:available NoteThe application of these products in harsh environnants should always be checked before use. Spécifications subject to alteration. Color of housingmetallic Product characteristicsVibration résistance, Oil résistance, Résistance to flying welding sparks, Electromagnetic résistance Classification Belden classI/O Modules with Digital Inputs (DI) Belden brandLumberg-Automation Mechanical data Weight605 g Dimensions (W x H x D)59.6 mm x 261.4 mm x 17.6 mm Environmental conditions Environmental température-10 °C... 60 °C Degree of protection (IP), mountedIP67 Materials Housing material / Molded bodyZinc diecasting, nickel-plated Approvals ApprovalsUL, CSA RoHS 2002/95/EG compilantyes Bus System Fieldbus SystemEthernet/lP™ Bus ConnectionM12, Dcoded Number of contacts4 Transmission rate10/100 Mbps Address range0 dec.... 255 dec. Rotary address switches0 dec.... 255 dec. Default addressOdec.
