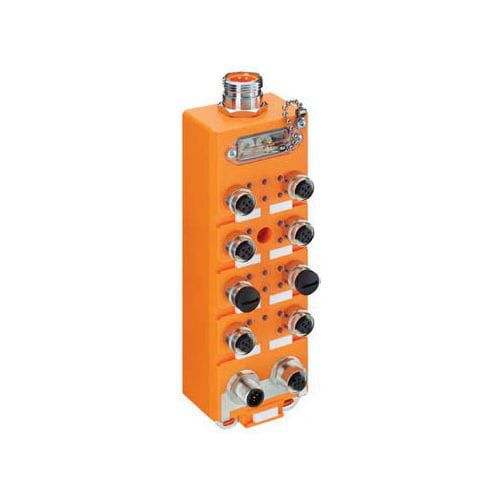

Digital I/O module 0930 DSL 311

DeviceNet8-channelIP67

Order No.:45133 Type:0930 DSL 311 Description:DeviceNet™ device with 8 digital outputs (2 A) to connect standard actuators, combined FIXCON/M12 socket, rotary switches for addressing, 7/8" bus connection, 7/8“ actuator supply Availability:available Diagnostics:The diagnostic message via the fieldbus provided by the DeviceNet™ modules of the brand Lumberg Automation™, consists of an additional input byte. which is appended to the standard input process data. Depending on the particular module, the diagnostics is sent module- or slot-based. It is generated when an overload. actuator low voltage or actuator short circuit is detected. In addition, the corresponding LEDs simplify the troubleshooting. Note:The application of these products in harsh environments should always be checked before use. Spécifications subject to alteration. Color of housingorange Product characteristics:Oil résistance. EMC résistance. Vibration résistance Classification Belden class:I/O Modules with Digital Outputs (DO) Belden brand:Lumberg-Automation Mechanical data Weight:570 g Dimensions (WxHxD):60 mm x 199 mm x 51.3 mm Environmental conditions Environmental température0 °C... 60 °C Degree of protection (IP), mounted:IP67 Materials Housing material / Molded body:PUR Approvals Approvals:UL Bus System Reldbus System:DeviceNet Bus Connection:7/8" Autobaud:Yes Transmission rate:max. 500 kbit/s Address range:0 dec.... 63 dec. 0dec.-e3deC.
