Order No.:51889
Type:0930 DSL 113

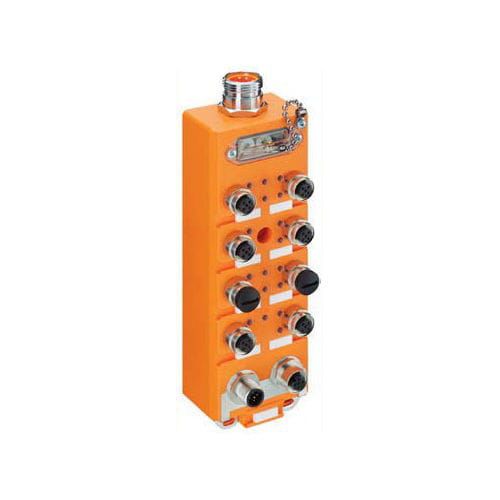

Description:DeviceNet™ device with 8 digital inputs to connect standard sensors and 8 digital outputs (0.5 A) to connect standard actuators, combined FIXCON/M12 socket, rotary switches for addressing, M12bus connection, 7/8“ actuator supply
Availability:available
Diagnostics:The diagnostic message via the fieldbus provided by the DeviceNet™ modules of the brand Lumberg Automation™, consists of an additional «put byte. which is appended to the standard input process data. Depending on the particular module, the diagnostics is sent module- or slot-based. It is generated when an overload. actuator low voltage or actuator short circuit is ôetected. In addition, the corresponding LEDs simplify the troubleshooting.
Note:The application of these products in harsh environments should always be checked before use. Spécifications subject to alteration.
Color of housingorange
Product characteristics:Oil résistance. EMC résistance. Vibration résistance
Classification
Belden class:I/O Modules with Digital Inputs and Outputs (Dl/DO)
Belden brand:Lumberg-Automation
Mechanical data
Weight:570 g
Dimensions (W x H x D):60 mm x 199 mm x 51.3 mm
Environmental conditions
Environmental température:0 °C... 60 °C
Degree of protection (IP), mounted:IP67
Materials
Housing material / Molded body:| PUR
Approvals
Approvals| UL
Bus System
Fieldbus System:DeviceNet
Bus Connection:M12
Autobaud:Yes
Transmission rate:max. 500 kbit/s
Address range:0 dec.... 63 dec.
Rotary address switches:0 dec.... 63 dec.
Default address63 dec.
