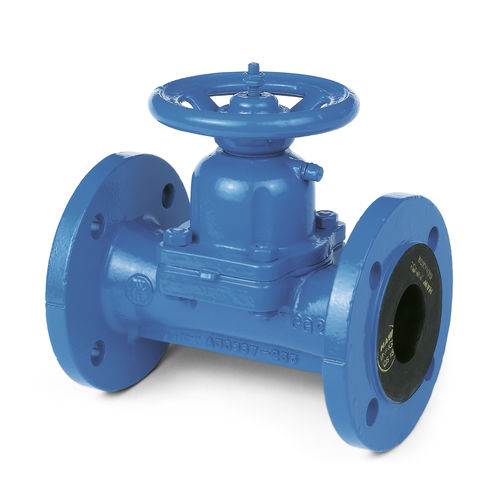

Diaphragm valve with handwheelcontrolfor water
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- with handwheel
- Function
- control
- Media
- for water
- Body
- rubber, epoxy
- Other characteristics
- automatic
- DN
Max.: 300 mm
(11.811 in)Min.: 15 mm
(0.591 in)- Pressure
Max.: 10 bar
(145 psi)Min.: 4 bar
(58 psi)
Description
Diaphragm valve
DN 15 - 300
PN 4 - 10
Body: EN-JL1040
Coating: Epoxy, Rubber lining, Halar
Diaphragm valves with or without rubber coating, and different qualities of diaphragm for different media.
Straight patter or Straight-though bore pattern
Drip-proof closure even with suspended solids in media
Universal use due to individual combinations of body and diaphragm materials adapted to media
Hood and pressure piece are not in contact with the medium
Lift restriction as standard
Numerous actuation types for manual and automatic operation available
