Ball valve VANNAIRmanualcontrolfor air
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Function
- control
- Media
- for air
- Other characteristics
- standard
- DN
Max.: 200 mm
(7.874 in)Min.: 40 mm
(1.575 in)- Pressure
Max.: 40 bar
(580.2 psi)Min.: 10 bar
(145 psi)- Temperature
60 °C
(140 °F)
Description

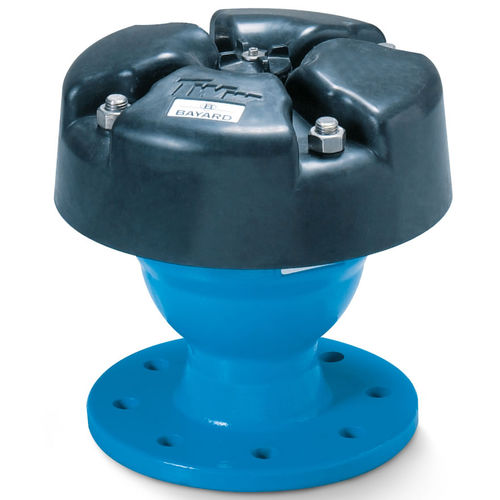

VANNAIR three functions air valve
THREE FUNCTIONS: degassing + high flow rate air inlet + high flow rate air outlet
VANNAIR allows the control of air in networks: its performances and reliability have been proven by longterm field experience.
The range is divided in four theoretical categories according to DN of the network protected by the VANNAIR : V200, V500, V1000 and V2000.
Flanged type: DN40 up to 200 in standard, DN250 on request
Working pressure: 10 bar, 16 bar, 25 bar, 40 bar
Flanges drilling according to standard EN 1092-2 and ISO 7005-2: ISO PN10 up to ISO PN40 according to working pressure
Medium Temperature: up to +60°C
