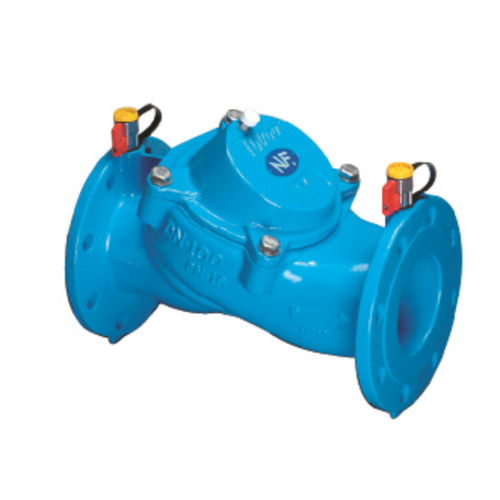

Ball check valve NOREPOL EA

flangebackflowsanitary

NOREPOL EA check valve Protect a drinking water network against any risk of pollution due to a possible backflow of contaminated fluid. This return may be caused by a pressure drop in the network or a back pressure from a potentially non potable water network. To be installed at the point at which the drinking water is supplied, after the water meter, for protecting the public network, in case of installations which are complex, dangerous and difficult to check: chemical products or metal treatment plants or hospitals. On a drinking water network for protecting water supply points for sanitary use: wash-basins, showers or kitchens. Flanged type: DN50 to 250 Maximal Working pressure: PN16 Flanges: ISO PN10, ISO PN16 on request Medium Temperature: from +10°C to +60°C (maximum temperature for backflow +90°C) CHARACTERISTICS Controllable device with pressure taps for upstream and downstream pressure checks. Tested on 25 000 cycles of opening/closing with a pressure variation of 0 to 16 bar. Head loss within the requirements of the standard. Horizontal of vertical upwards possible installation. NF ANTIPOLLUTION mark Conforms to NF P 43-017 head loss standard and NF E 29-305-1 to ISO 5752 face to face dimensions.
