Electrical safety tester UNIMET® 400ST

for electrical equipmentfor medical devicesmedical

Short description

• Lightweight portable tester for medical electrical equipment with patient connections, hospital and care beds
• Practical operation with four keys and automatic/manual sequences
• Storage and management of test data for maintenance and compliance

Key benefits

• Performs standard-compliant safety tests for medical electrical equipment
• Intuitive operation with four operating keys
• Automatic and manual test sequences for flexible workflows
• Classification assistance for device types

Features

• Easy and safe handling for on-site and mobile testing
• Automatic and manual test sequences
• Data input via keyboard or barcode scanner
• Visual inspection, functional test and electrical tests
• Up to 600 data records storage capacity
• Data exchange and storage via UNIData 300 software
• Compatible with common application programs (e.g. visual FM, MT Data, Fundamed)

Wide variety of interfaces

• RS-232 connection
• PS/2 port for scanner and keyboard
• Centronic connection for printer
• USB via converter cable (USB/RS-232)

Standard accessories

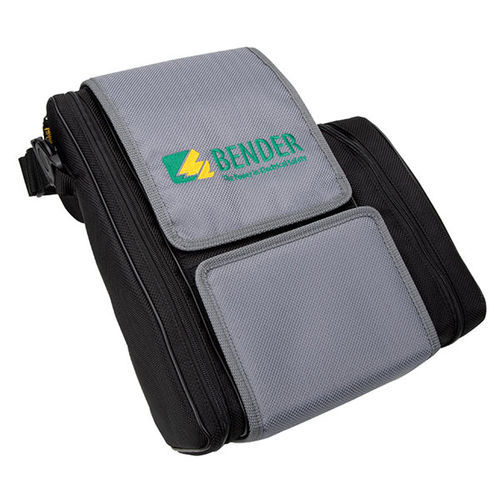

• Robust carrier bag with universal carrying concept
• Measuring lead with test probe and test terminal
• 0-modem cable
• Converter cable USB/RS-232
• Data management software UNIData 300

Service

• Calibration interval: 36 months
• Warranty: 36 months
• Software updates available to maintain compliance and functionality

Applications / Standards

• Standard-compliant tests according to: IEC 62353:2007-05; DIN EN 62353 (VDE 0751-1):2008-08; ÖVE/ÖNORM EN 62353:2009-01; DIN VDE 0701-0702:2008-06; ÖVE E8701-1:03-01

Tests and measurements that can be performed

• Protective earth conductor resistance
• Insulation resistance
• PE current
• Equipment leakage current
• Touch current
• Applied part leakage current

Measurement methods of leakage currents

• Direct measurement method
• Differential measurement method
• Equipment leakage current - alternative measurement

Further measurements and tests

• Mains voltage
• Current consumption
• Visual inspection
• Functional test

UNIMET® 400ST Variant(s)
Device - Art.-No.
UNIMET® 400ST (D/D) - B96024000
UNIMET® 400ST (GB/GB) - B96024001


Optional accessories for UNIMET® 400ST
Device - Art.-No.
Barcode scanner-PS/2 - B96020082
DS32A Three-phase adaptor (in-operation testing) - B96020098
PAT Box - B96020096
DS32 DCT Three-phase adaptor – passive - B96020100


Downloads (available documents)
UNIMET® 300ST - 400ST (CE Declarations of conformity)
UNIMET® 400ST (Manual, EN)
UNIMET® 400ST (Product Brochure, EN)


Technical specifications

• Model name: UNIMET® 400ST
• Manufacturer / Brand: Bender
• Primary use: Safety testing of medical electrical equipment including patient-connected devices and electrical hospital/care beds
• Storage capacity: up to 600 data records
• Data management: UNIData 300 software (data exchange and storage)
• Interfaces: RS-232, PS/2 (scanner & keyboard), Centronic (printer), USB/RS-232 via converter cable
• Included accessories: carrier bag, measuring lead with test probe and test terminal, 0-modem cable, USB/RS-232 converter cable, UNIData 300 software
• Optional accessories: barcode scanner PS/2; DS32A three-phase adaptor (in-operation); PAT Box; DS32 DCT three-phase adaptor (passive)
• Standards supported: IEC 62353, DIN EN 62353 (VDE 0751-1), ÖVE/ÖNORM EN 62353, DIN VDE 0701-0702
• Test functions: protective earth conductor resistance, insulation resistance, PE current, equipment leakage current, touch current, applied part leakage current
• Leakage current measurement methods: direct, differential, alternative equipment leakage method
• Other measurements: mains voltage, current consumption, visual inspection, functional test
• Calibration interval: 36 months
• Warranty: 36 months
