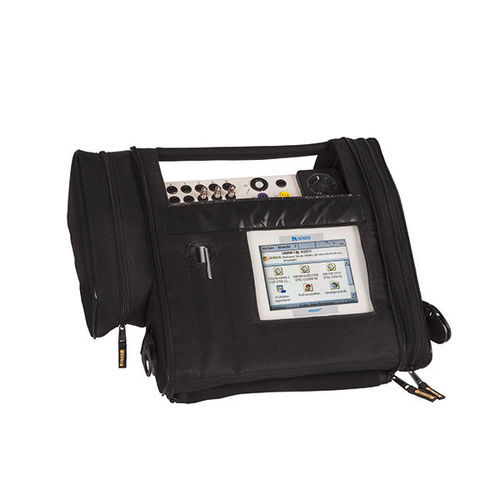

Electrical safety tester UNIMET® 810ST

insulation resistanceleakage currentearth-leakage

Overview
The service safety tester for electrical and functional checks. The first and only safety tester that automatically compares reference values with later measurements according to standards. UNIMET® 810ST allows definition of custom test procedures. Device history (log book) and protocols can be managed via the UNIMET® Control Center PC software.

Features

• Windows-based user interface for guided operation
• Data exchange and storage via UNIMET® Control Center
• Automatic, semi-automatic and manual test sequences, user-definable
• Data input via touchscreen, keyboard or barcode scanner
• Visual inspection, electrical safety and functional tests configurable by user
• Data memory > 10,000 records with filter and fast selection
• Management and scheduling of test dates
• Multitenancy and catalogue system support
• Test probe with two switching contacts for semi-automatic testing of conductive parts not connected to PE

Wide variety of interfaces

• RS-232 port
• USB ports for printer, scanner, keyboard and USB stick
• PS/2 port for scanner and keyboard
• Ethernet network connection (optional)

Standard accessories

• Robust carrier bag with universal carrying concept
• Measuring lead with test probe
• Measuring lead with test clip
• Null-modem cable
• VK701-7 for testing non-heating devices
• UNIMET® Control Center data transfer software

Service

• Calibration interval: 36 months
• Warranty: 36 months
• Software updates to maintain functionality

Applications
Standard compliant tests

• IEC 60601-1 (3rd Edition) — licence option
• IEC 62353:2014
• DIN EN 62353 (VDE 0751-1):2015-10
• IEC 61010-1:2011-07 — licence option
• ÖVE/ÖNORM EN 62353:2009-01
• DIN VDE 0701-0702:2008-06

Standard-compliant measurements

• PE conductor resistance
• Insulation resistance
• Earth leakage current
• Protective conductor current
• Equipment leakage current
• Touch current and touch voltage
• Direct and differential measurement methods
• Alternative methods for equipment and applied part leakage currents
• Applied part leakage current AC/DC and patient auxiliary current AC/DC

UNIMET® 810ST Variant(s)
UNIMET® 810ST (D/D) — B96028020
UNIMET® 810ST (GB/GB) — B96028024
UNIMET® 810ST (CH/CH) — B96028026
UNIMET® 810ST (B/B) — B96028027
UNIMET® 810ST (US/US) — B96028028
Software license for UNIMET®800ST/810ST (IEC 60601-1) — B96028200
Software license for UNIMET®800ST/810ST (IEC 61010-1) — B96028201


External power source 25 A
EPS800 (D/D) — B96028050
EPS800 (GB/GB) — B96028054
EPS800 (CH/CH) — B96028056
EPS800 (B/B) — B96028057
EPS800 (US/US) — B96028058


Optional accessories

• TP800 active test probe — B96020080
• Barcode scanner PS/2 — B96020082
• DS32A three-phase adaptor — B96020098
• TB3 testbox — B96020025
• PK3 test kit — B96020009

Technical specifications

• Model: UNIMET® 810ST
• User interface: Windows-based
• Test sequences: automatic, semi-automatic, manual; user-definable
• Data storage: > 10,000 records, filter and date management
• Data exchange: UNIMET® Control Center software
• Input: touchscreen, keyboard, barcode scanner
• Interfaces: RS-232, USB, PS/2, Ethernet (optional)
• Measurements: PE resistance, insulation resistance, earth leakage, protective conductor current, equipment leakage, touch current/voltage
• Measurement methods: direct, differential, alternative methods for leakage currents
• Applied part / patient measurements: AC/DC applied part leakage, patient auxiliary current AC/DC
• Calibration interval: 36 months
• Warranty: 36 months
