Electrical safety tester UNIMET® 300ST

for electrical equipmentfor medical devicesmedical

Overview

• Test system for electrical safety of hospital and care beds and associated electrical equipment in accordance with accident prevention regulations and medical device test standards.
• Designed for safe testing of electrical equipment and medical electrical devices without patient connections.
• Intuitive 4-key operation with standard-based classification assistance.

Key features

• Automatic and manual test sequences
• Data input via keyboard or PS/2 barcode scanner
• Visual inspection, functional test and electrical measurements
• Memory for 600 data records; UNIData 300 for data exchange and storage
• Compatibility with common application programs (e.g. visual FM, MT Data, Fundamed)

Interfaces

• RS-232
• PS/2 port for scanner and keyboard
• Centronic connection for printer; USB/RS-232 converter supported

Standard accessories

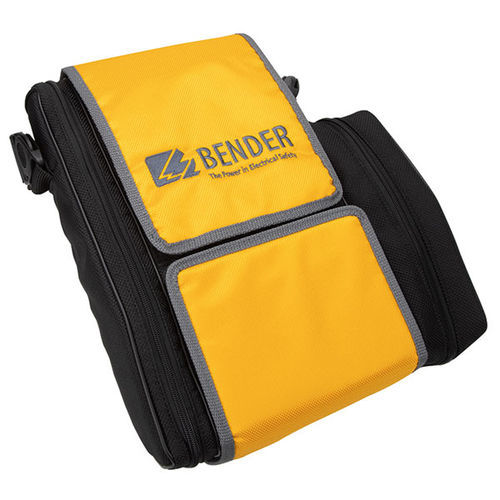

• Robust carrying bag with universal transport concept
• Measuring lead with test probe and test terminal (probe/clamp)
• Null-modem cable
• USB/RS-232 converter cable
• UNIData 300 data management software

Services

• Calibration interval: 36 months
• Warranty: 36 months
• Software updates to ensure long-term applicability
• Operator training courses available

Applications / Standards

• Tests in accordance with IEC 62353, DIN EN 62353 (VDE 0751-1), ÖVE/ÖNORM EN 62353, DIN VDE 0701-0702 and related standards

Tests that can be performed

• Protective earth conductor resistance
• Insulation resistance
• PE current
• Equipment leakage current
• Touch current

Measurement methods for leakage currents

• Direct measurement method
• Differential measurement method
• Alternative equipment leakage current measurement

Further measurements and checks

• Mains voltage
• Current consumption
• Visual inspection
• Functional test

Variants
UNIMET® 300ST (D/D) | B96023000
UNIMET® 300ST (CH/CH) | B96023001

Optional accessories
Barcode scanner - PS/2 | B96020082
DS32A three-phase adaptor for testing medical three-phase devices in operating condition | B96020098
DS32 DCT three-phase adaptor – passive | B96020100

Downloads
Product brochure (EN), user manual, CE declaration (UNIMET® 300ST / 400ST), UNIData 300 software information

Technical specifications

• Model: UNIMET® 300ST
• Operation: 4-key operation; automatic and manual test sequences
• Data storage: Memory for 600 records; UNIData 300 for exchange and archiving
• Data input: Keyboard or barcode scanner (PS/2)
• Interfaces: RS-232, PS/2, Centronic; USB/RS-232 converter supported
• Included measuring equipment: Measuring lead with probe and test clamp
• Measurements: Protective earth resistance, insulation resistance, PE current, equipment leakage current, touch current, mains voltage, current consumption
• Leakage measurement methods: Direct, differential, alternative
• Calibration interval: 36 months; Warranty: 36 months
