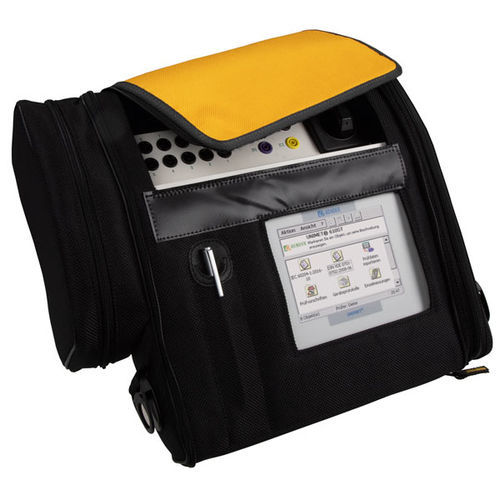

Electrical safety tester UNIMET® 610ST

for electrical equipmentfor medical devicesportable

Overview
The UNIMET® 610ST is a portable test system for electrical equipment and machines. It stores the "first measured value" according to the applicable standard and uses it as a reference for subsequent comparisons. Test procedures and device protocol histories are created and managed via the supplied PC software UNIMET® Control Center.

Features

• Windows-based user interface for straightforward operation
• Data exchange and storage via UNIMET® Control Center
• Automatic, semi-automatic or manual test sequences; user-definable test design
• Data input via touchscreen, keyboard or barcode
• Visual inspection, electrical safety and functional tests configurable by user
• Data storage > 10,000 records with filter and test-date management
• Multitenancy and catalog system support
• Test probe with two switching contacts for semi-automatic testing of parts not connected to PE
• Compatible with common application programs (e.g. wave Facilities®, NOVA-FM, Fundamed)

Interface diversity

• RS-232 interface
• USB ports for printer, scanner, keyboard and USB stick
• PS/2 port for scanner and keyboard
• Optional Ethernet network connection

Standard accessories

• Robust protection and transport bag with universal carrying concept
• Measuring lead with test probe
• Measuring lead with test terminal
• Null-modem cable
• VK 701-7 for testing non-heating appliances
• Data management software UNIMET® Control Center

Service

• Calibration interval: 36 months
• Warranty period: 36 months
• Future-proof through software updates
• Training seminars available (e.g. Grünberg)

Applications - Standard-conforming tests according to

• DIN EN 60204-11:2019-06
• VDE 0113-11:2019-06
• DIN VDE 0701-0702:2008-06

Standard-conforming measurements

• Protective earth resistance
• Insulation resistance
• Protective earth conductor current
• Equipment leakage current
• Touch current
• Direct method
• Differential measurement
• Alternative method

Variants
Device | Art. No.
UNIMET® 610ST (DE/DE) | B96026020

Optional accessories (selection)
VK701-1 | Adapter Schuko/non-heating devices | B96020048
VK701-2 | Adapter CEE 16 A 5-pole | B96020049
VK701-4 | Adapter CEE 32 A 5-pole | B96020051
VK701-5 | Adapter CEE 63 A 5-pole | B96020052
VK701-6 | Adapter Schuko | B96020067
VK701-7 | Adapter non-heating devices | B96020066
VK701-8 | Adapter kit 16 A for DS32A | B96020066
RS-232/RS-232 interface cable | Null-modem cable for PC connection, 9-pin female-female | B96012012
USB2.0-RS232-Converter | USB/RS-232 converter cable for UNIMET® | B96020086
TP800 | Active test probe (with switch) | B96020080
Test probe | Measuring lead, 3 m, with test probe | B928748
Cable 150cm | Measuring lead, 150 cm, 4-mm connector | B928703
Test terminal | Test terminal black | B928741
Stylus Pen | Touchscreen pen | B928749
Barcode scanner PS/2 | for UNIMET® 610ST (PS/2 port) | B96020082
Barcode scanner USB | for UNIMET® 610ST (USB port) | B96020092
Scanner bag UNIMET® | for barcode scanner | B96020102
Flex keyboard | for UNIMET® 610ST (USB port) | B96020093
TP16 | Cable drum with measuring cable, cable length 16 m | B96020054
DS32A | Three-phase adapter for testing three-phase devices during operation | B96020098

Technical specifications

• Brand: Bender
• Model: UNIMET® 610ST
• Main device variant: B96026020
• Stores the first measured value as reference in accordance with standards
• User-definable test sequences (automatic / semi-automatic / manual)
• Data management via UNIMET® Control Center; storage > 10,000 records; filter and test-date management
• Input options: touchscreen, keyboard, barcode
• Interfaces: RS-232, USB (printer/scanner/keyboard/USB stick), PS/2, optional Ethernet
• Includes test probe options (active probe with switch) for semi-automatic testing of parts not connected to PE
• Calibration interval: 36 months; Warranty: 36 months
• Compatible with common third-party application programs (examples provided by manufacturer)
