Temperature data-logger DS 400

4-20mAflowpressure

Product overview

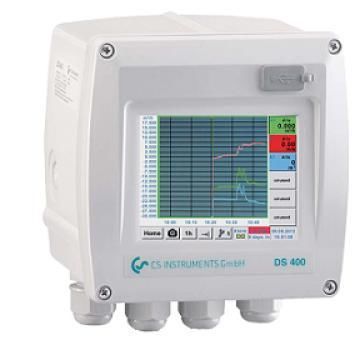

The DS 400 paperless chart recorder from CS-Instruments is a compact industrial recorder with a 3.5" touch graphic display for real-time monitoring and recording of flow rates and other measured parameters. It provides configurable analogue outputs, alarm relays and optional data logging and communication interfaces for integration into monitoring systems.

Product table
Product | Description | Order No.
DS 400 - paperless recorder with graphic display and touch screen | Digital (Z500 4003) | 0500 4000 D

Standard equipment

• USB interface
• 3.5" graphic display with touch operation
• Integrated mains unit for sensor supply
• 4...20 mA analogue output for all connected active sensors
• Pulse output for total consumption (flow sensors)
• 2 alarm relays (potential-free changeover contacts, max. 230 V, 3 A)

Software options

• Integrated webserver
• Mathematics calculation function
• Totaliser (summation) function

Hardware options

• Integrated data logger (optional)
• Ethernet / RS 485 interface
• Additional selectable sensor inputs (digital or analogue)

Functional highlights
Real-time monitoring and recording of flow and other parameters; configurable alarm outputs; standardized 4...20 mA analogue outputs for active sensors; pulse output for totalisation; optional integrated data logger storing up to 100 million measured values; optional webserver for remote access to live and historical data.

Technical specifications

• Brand: CS-Instruments
• Model: DS 400
• Product number / SKU: 05004000 (0500 4000 D for digital version)
• Weight: 7 kg
• Dimensions (wall housing): 118 x 115 x 98 mm (IP54)
• Dimensions (panel mounting): 92 x 92 x 75 mm
• Inputs: 2 digital inputs for FA 5xx / VA 5xx
• Interface: USB (standard); Ethernet / RS 485 optional
• Power supply: 100...240 VAC, 50-60 Hz
• Analogue outputs: 4...20 mA for all connected active sensors
• Pulse output: for total consumption (flow sensors)
• Alarm outputs: 2 relays (potential-free)
• Data logger (option): up to 100 million measured values, configurable start/stop and measurement rate
• Additional sensor inputs (option): pressure, temperature, clamp meters, third-party sensors (4...20 mA, 0...10 V, Pt100, Pt1000)
• Accuracy: depends on connected sensor (see sensor specifications)

Downloads and documents
Datasheet DS 400 (PDF); Installation and user manual (PDF); Compatible sensors datasheet (PDF).
