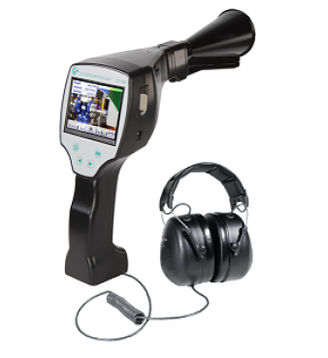

Ultrasonic leak detector LD 510

acousticlasercompressed air

Overview
The LD 500/LD 510 leak detection devices with integrated camera and leak measurement and calculation functions are mobile measuring instruments designed for daily industrial use. With advanced sensor technology, even very small leaks (0.1 l/min, approx. €1/year) can be located, measured and documented over long distances in a single step. The LD 510 includes a camera, laser distance measurement and the ability to capture photos of leaks and transfer data to a PC.

Set contents / ordering
Set LD 510 composed of: — 0601 0106
LD 510 Leak detector with acoustic funnel, integrated camera and additional input for external sensors, 100 leak tags for on-site identification — 0560 0106
Integrated laser distance measurement — Z554 5000
0554 0106 — (related item: transport case)
Noise-reducing headphones — 0554 0104
0530 0104 — (related item: directional tube with tip)
Power supply — 0554 0009
Coiled cable to connect the ultrasonic sensor, length 2 m (extended) — 020001402
Holster with shoulder strap for LD 500/510 — 020001795

Benefits

• Determine your leak rate (l/min) and potential savings (€/year)
• Detect the smallest leaks, even at long distances
• Auto level: automatically adjusts sensitivity to the environment and reliably suppresses ambient noise
• Take photos of detected leaks for documentation
• Document the leak and required maintenance actions
• Transfer leak data to your PC via USB
• Create reports compliant with ISO 50001
• Up to approx. 9 hours continuous operation possible

Possible applications

• Leak detection: identify and locate leaks in compressed air systems; quantify leak size and severity to prioritise repairs.
• Pressure drop measurement: compare pressure readings at different points to identify areas affected by leaks.
• Air flow calculation: estimate the volume of compressed air lost to leaks and quantify associated energy costs.

Technical specifications

• Brand: CS-Instruments
• Model: LD 510
• Operating frequency: 40 kHz ± 2 kHz
• Connections: 3.5 mm headphone jack; mains adapter input for external charger
• Laser: Wavelength 630...660 nm; output power < 1 mW (laser class 2)
• Power output for external sensor: 24 VDC ± 10%, output current 120 mA continuous
• Display: 3.5" touchscreen
• Interface: USB
• Data logger: 16 GB SD card (approx. 100 million values)
• Battery: internal rechargeable Li-ion batteries, approx. 9 h continuous operation, charge time approx. 4 h
• Operating ambient temperature: 0...+50 °C
• EMC: DIN EN 61326
• Auto level: automatically adapts sensitivity to the environment and suppresses ambient noise
• Sensitivity: min. 0.1 l/min at 6 bar, 5 m distance (approx. €1/year compressed air cost)
• Weight (metadata): 3.5 kg
• Weight without headphones: 540 g
• External sensor input (LD 510 only): sensor supply output 24 VDC ±10%, 120 mA continuous; measurement ranges and accuracy: see CS external sensors
