Dry oxygen generator OXYBERG®500

for the semiconductor industryfor aquacultureindustrial

Product overview

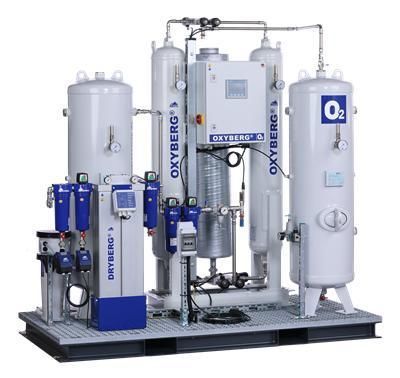

Skid-mounted oxygen generator package OXYBERG®500 for on-site continuous oxygen supply, including integrated purity and pressure monitoring.

Main contents

• OXYBERG®500 oxygen generator with purity and pressure sensors
• Air receiver: 90 L with condensate drain
• Oxygen vessel: 90 L with accessories
• Compressed air filter line ISO 8573-1 class 1.-.1 (PUREBERG® F02 WW water separator, PUREBERG® Z02 oil-free package)
• Compressed air dryer: adsorption dryer DRYBERG® AD30
• Metal skid frame, mounted with piping and electrical wiring (2x1)
• Air compressor Stationary Screw Compressor KOMPBERG® BSDK7 — optional

Installation and documentation
Package delivered skid-mounted for straightforward site integration. Documentation supplied to support installation, commissioning and operation.

• Assembly layout drawing
• P&I (Piping & Instrumentation) diagram
• Plant description
• List of electrical/electronic consumers
• Operation & maintenance manual
• List of spare & wearing parts
• Wiring diagrams and terminal clamp diagrams
• Functional drawings and material verifications

Certifications, standards, codes and regulations
All works, materials and equipment comply with applicable codes and standards of the Federal Republic of Germany. Additional standards or certificates can be provided by agreement.

• DIN standards
• VDI / VDE regulations
• IEC standards
• UVV regulations
• Other standards/codes possible by agreement (e.g. ASME, ATEX, GL, BV)

Applications
OXYBERG® skid oxygen generators are suitable where a continuous on-site oxygen supply is required: metallurgy, cement and mineral industry, automotive, steel plants, chemical and pharmaceutical production, food & beverage, semiconductor & electronics, medical breathing air applications, glass production, biogas plants and aquaculture.

Technical specifications

• Model: OXYBERG®500
• Manufacturer: BERG Kompressoren GmbH
• Product number (SKU): 1020111550
• Net price (excl. VAT): EUR 26,400.00
• Gross price (incl. VAT shown on page): EUR 31,416.00
• Weight: 542 kg
• Air receiver capacity: 90 L
• Oxygen vessel capacity: 90 L
• Compressed air filter class: ISO 8573-1 class 1.-.1 (PUREBERG® F02 WW, PUREBERG® Z02)
• Compressed air dryer: DRYBERG® AD30 (adsorption dryer)
• Skid: metal frame skid-mounted with piping and electrical wiring (2x1)
• Optional: Stationary screw compressor KOMPBERG® BSDK7 (2x1)
